SparkFun BabyBuck Regulator Breakout - 5V (AP63357)
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
Quantity Discounts:
- 10+ $9.65 (exc GST)
- 25+ $9.45 (exc GST)

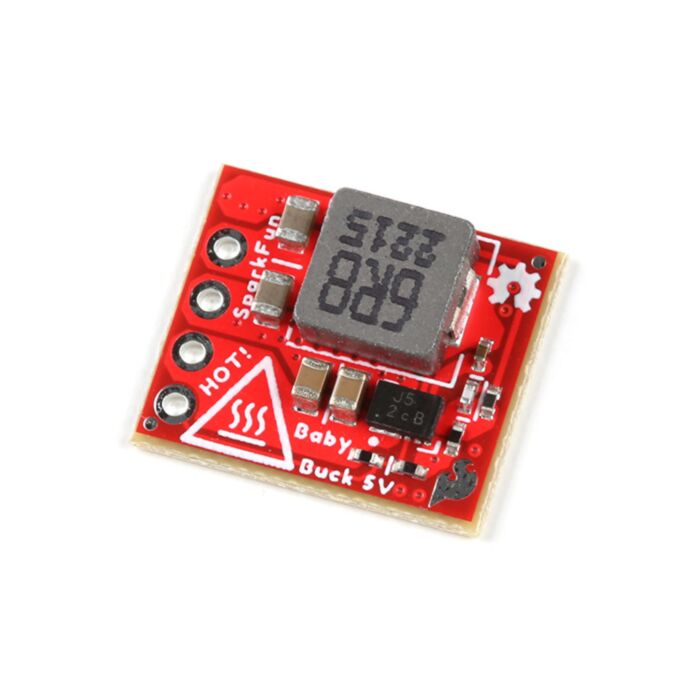

The SparkFun 5V BabyBuck Regulator Breakout features the AP63357 from Diodes Inc., a 3.5A synchronous buck converter with a wide input voltage range of 3.8V to 32V. The fully integrated 74mO high-side power MOSFET/40mO low-side power MOSFET provides a high-efficiency step-down DC/DC conversion.
The BabyBuck regulator is a minimalistic version of our buck regulator boards. This board is configured to provide a regulated 5V output and features a high-voltage EN (enable) control pin that is rated up to 32V. On the back of the board, a small copper pad is available to dissipate excess heat with a heat sink. With only four PTH pins for connecting input and output power, everything fits on a mere 0.63in. x 0.52in. board layout.
Check out the SparkFun Buck Regulator Breakout - 5V (AP63357), for the larger, full-feature version of this board.
Note: While the AP63357 is rated up to a 3.5A output, users should expect a 3A maximum with our boards due to thermal constraints. The boards can output 3.5A but would require a sufficient amount of active cooling.
Get Started with the SparkFun AP63357 Buck Regulator Breakout Hookup GuideFeatures
BabyBuck Board Features:
- 0.63" x 0.52" PCB layout
- Four 0.1" spaced PTH pins
VIN- Power In (6V to 32V)GND- Common GroundVOUT- Power Out (Regulated 5V)EN- Enable (Pull high to enable the power output)
- 0.5" x 0.6" Plated copper pad (for heat sinks)
AP63357 Features:
- VIN 3.8V to 32V
- 3.5A Continuous Output Current
- 0.8V ± 1% Reference Voltage
- 22µA Low Quiescent Current (Pulse Frequency Modulation)
- 450kHz Switching Frequency
- Supports Pulse Frequency Modulation (PFM)
- Up to 86% Efficiency at 5mA Light Load
- Proprietary Gate Driver Design for Best EMI Reduction
- Frequency Spread Spectrum (FSS) to Reduce EMI
- Low-Dropout (LDO) Mode
- Power Good Indicator with 5M? Internal Pull-up
- Precision Enable Threshold to Adjust UVLO
- Protection Circuitry
- Undervoltage Lockout (UVLO)
- Output Undervoltage Protection (UVP)
- Cycle-by-Cycle Peak Current Limit
- Thermal Shutdown
