Introduction

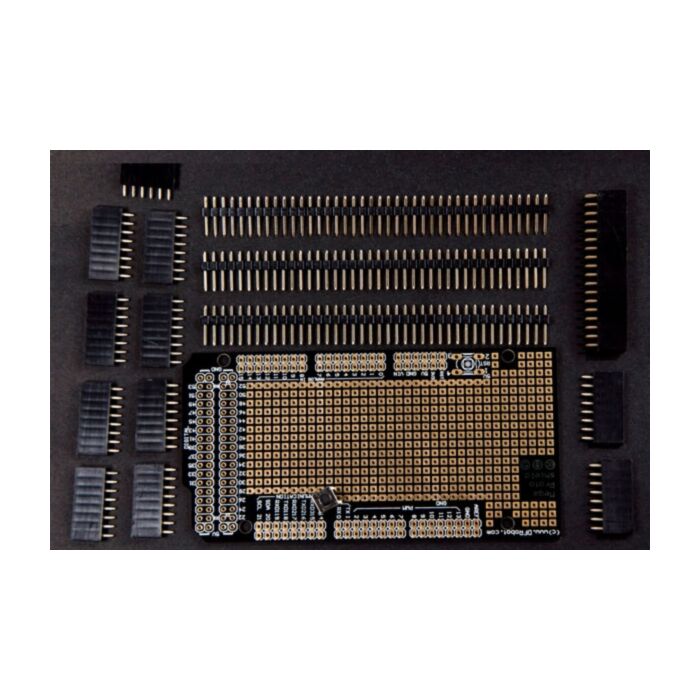

- This is a design for an open-source prototyping shield for Arduino Mega. It has tons of cool features, to make prototyping on your Arduino easy. Assembly and soldering is required!
Features
- Reset button up top
- Lots of GND and +5V rails
- DIP prototyping area makes it easy to add more chips
Compatibility
- Arduino Mega (Compatible)
