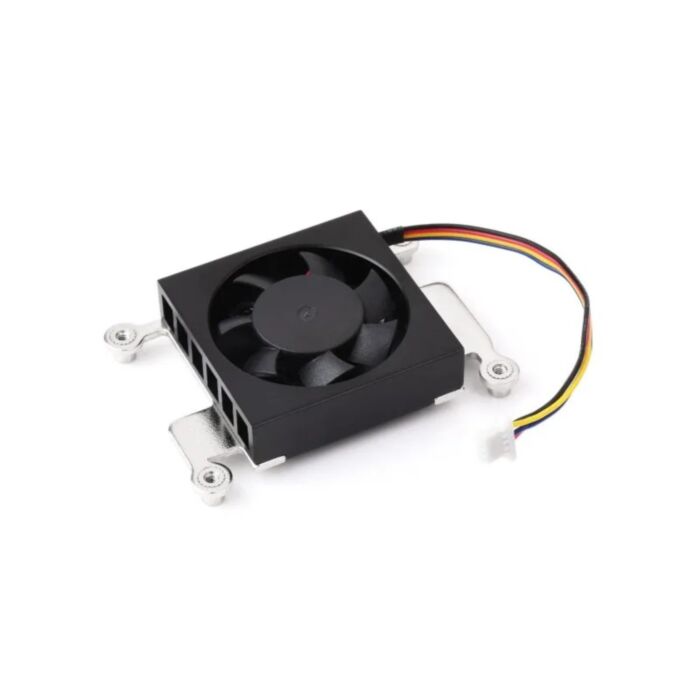

A low-profile, speed-adjustable 5 V fan that screws straight onto a Raspberry Pi Compute Module 5.
Available with a lead time
Expect dispatch between Nov 09 and Nov 16
Keep your Compute Module 5 cool with a finned heatsink and fan that sits directly over the module, in a body just 13 mm thick.
It suits CM5 carrier boards with a 4-pin PWM fan header. Waveshare shows it fitted on the official Compute Module 5 IO Board and on Waveshare's CM5 PoE base board (CM5-PoE-BASE-A). The cooler is shaped to leave the CM5's antenna section clear.
Setup takes three steps:
Attach the included thermal tapes to the Raspberry Pi Compute Module 5
Seat the cooler on the CM5 and fix it in place with the included screws
Connect the fan lead to your carrier board's fan header
Made to fit the CM5: 48 × 33 mm mounting-hole spacing matches the Compute Module 5, and the 54 × 39 mm body sits within its footprint on 3.0 mm threaded inserts
Board-controlled speed: your carrier board can vary the fan speed, up to a rated 5000 RPM ±10%
Antenna left clear: the cooler leaves room over the CM5's antenna section
Lightweight: at 34 g, it keeps a CM5 build compact
Easy on your power budget: draws just 1 W from the 5 V fan header
Property | Specification |
|---|---|
Rated power | 1 W (5 V, 0.2 ±0.02 A) |
Rated speed | 5000 RPM ±10% |
Interface | 4-wire PWM fan connector (speed-adjustable) |
Cable length | 90 ±10 mm |
Dimensions | 54 × 39 × 13 mm |
Mounting-hole spacing | 48 × 33 mm (±0.2 mm) |
Standoff height | 3.0 mm |
Weight | 34 g |
Part number | CM5-FAN-3007-5V |
1x CM5-FAN-3007-5V
1x Screw pack and thermal tapes
The Compute Module 5 and carrier board are not included.
