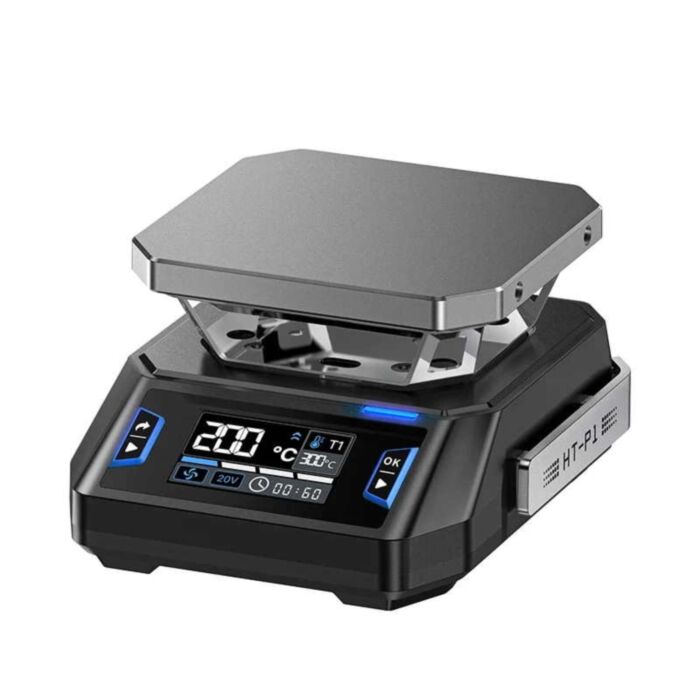

FNIRSI HT-P1A Mini Reflow Hot Plate (150W)
Reflow and preheat small PCBs from below with precise, stable heat, powered by USB-C PD or DC inputs.
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
A pocket-sized hot plate that heats your board from underneath, so you can reflow small SMD boards and preheat larger ones without blowing tiny components across the bench with a heat gun.
PID control holds the 50 × 50 mm heating surface within ±3°C anywhere from 100°C to 350°C. Use constant-temperature mode for preheating and rework, or switch to reflow mode and set the temperature and time for each stage to run a proper solder paste profile on small PCBs.
Power it from a USB-C PD charger or a 12–28V DC supply. The HT-P1A negotiates PD 2.0/3.0, giving up to 100W over USB-C, while a DC supply unlocks the full 150W. Adjustable power limiting lets you match the hot plate to your adapter, avoiding brownouts and restarts mid-job.
Note: No power supply is included. You'll need a 65W or 100W USB-C PD charger, or a 12–28V DC adapter.
Features
- Rapid heat-up with up to 150W of adjustable heating power (30–150W)
- Consistent results thanks to PID temperature control, stable to ±3°C across 100–350°C
- Two working modes: constant-temperature heating for preheat and rework, plus multi-stage reflow for solder paste
- Switch between jobs instantly with three temperature presets (T1/T2/T3)
- 1.44" colour display shows actual and target temperature, voltage, power draw, heating time and status at a glance
- Peace of mind from over-temperature protection, low-voltage warning, long-run protection and tilt detection (adjustable 20–50°)
- Flexible power: run from a USB-C PD charger or power bank on the go, or a DC supply on the bench
- Stays current with firmware updates over USB-C
- Compact 157g body with a detachable structure for easy maintenance, plus a storage case and covers for transport
- Customisable brightness, volume, temperature unit and auto-exit timer
Specifications
| Property | Specification |
|---|---|
| Model | HT-P1A |
| Power Input | DC 12–28V / USB-C PD (not simultaneously) |
| PD Protocols | PD 2.0 / PD 3.0 |
| Heating Power | 30–150W adjustable (150W via DC input) |
| Standby Power | 1.6W |
| Temperature Range | 100–350°C |
| Temperature Stability | ±3°C (PID control) |
| Heating Area | 50 × 50 mm |
| Working Modes | Constant temperature, multi-stage reflow |
| Presets | 3 (T1/T2/T3) |
| Display | 1.44" colour screen |
| Tilt Detection | 20–50° (adjustable) |
| Weight | ≈157g (hot plate only) |
| Dimensions | ≈68.8 × 81.8 × 44.5 mm |
What's Included
- 1x FNIRSI HT-P1A Mini Hot Plate (with heat-resistant silicone cover)
- 1x Transparent cover
- 1x Storage case
- 1x User manual
