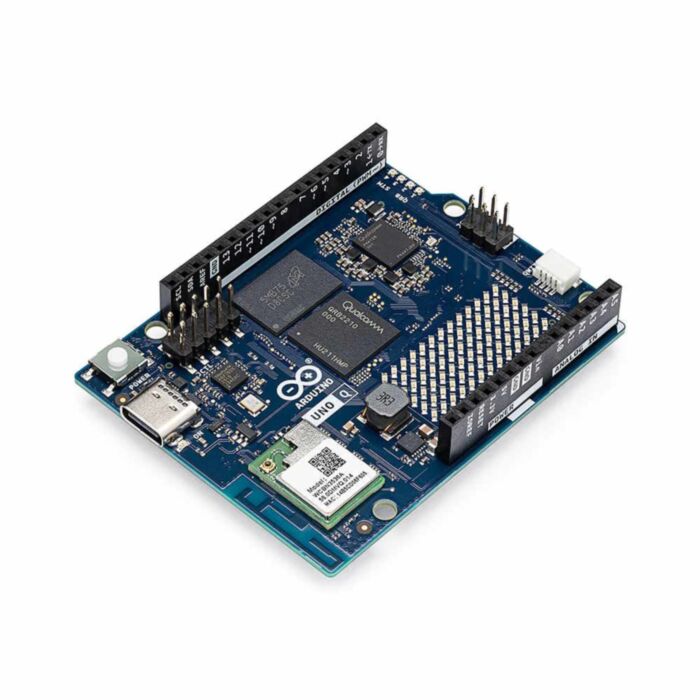

Arduino UNO Q

SKU: ABX00162 Brand: Arduino

Combining a high-performance Linux CPU with real-time control - capable of running modern tasks such as machine vision, voice recognition. All bundled into a powerful, easy-to-use Uno board!

$88.48 AUD, inc GST
$80.44 AUD, exc GST

Quantity Discounts:

  • 5+ $72.53 (exc GST)
  • 25+ $71.05 (exc GST)
  • 50+ $69.57 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Arduino are still in the pre-order phase - click the 'sign-up to get notified' button to stay in the loop!

Meet Arduino UNO Q, a dual-processor development board that pairs a Linux Debian computer with a real-time microcontroller. Prototype robots, edge AI, or connected IoT devices on a single, unified platform that lets sketches and Python live side by side via the Arduino App Lab.

Scale ideas fast with the onboard CPU - a Qualcomm Dragonwing QRB2210 microprocessor for AI vision and audio, plus an STM32U585 microcontroller for deterministic control. It works with classic UNO shields, new carriers, and Modulino/Qwiic/PiicoDev modules for rapid prototyping.

Technical Specifications

Microprocessor Qualcomm Dragonwing™ QRB2210:
Quad-core Arm® Cortex®-A53 @ 2.0 GHz
Adreno GPU 3D graphics accelerator
2x ISP (13 MP + 13 MP or 25 MP) @ 30 fps
Microcontroller STM32U585
Arm® Cortex®-M33 up to 160 MHz
2 MB flash memory
786 KB SRAM
Memory 2 GB LPDDR4
Storage 16 GB eMMC (no SD card required)
Interfaces and IO
  • I2C/I3C
  • SPI
  • PWM
  • CAN
  • UART
  • PSSI
  • GPIO
  • JTAG
  • ADC
  • 4× RGB user-controllable LEDs
  • 8x13 Blue LED Matrix
  • 1x Qwiic connector voltage 3V3, I2C
  • 1x User push-button
  • JCTL: MPU Remote Debug connector
Video

Video output supported through USB-C

MIPI (DSI) pins via JMEDIA header

Audio

Microphone IN / Headphone OUT / Line OUT on JMISC

Wireless Wi-Fi 5 dual band 2.4 GHz and 5 GHz, Bluetooth 5.1
Connectors Classic UNO headers, high-speed headers for vision, audio, display; Qwiic connector
USB-C Power delivery, video output, and support for USB peripherals via a dongle
On-board display 8 x 13 LED matrix
AI-ready examples Object and human detection, anomaly detection, image classification, sound recognition, keyword spotting
Operating System/Software stack

Linux Debian OS with upstream support

Arduino Core on Zephyr OS

Containerisation via Docker

Dimensions 68.85 mm x 53.34 mm (UNO form factor)
