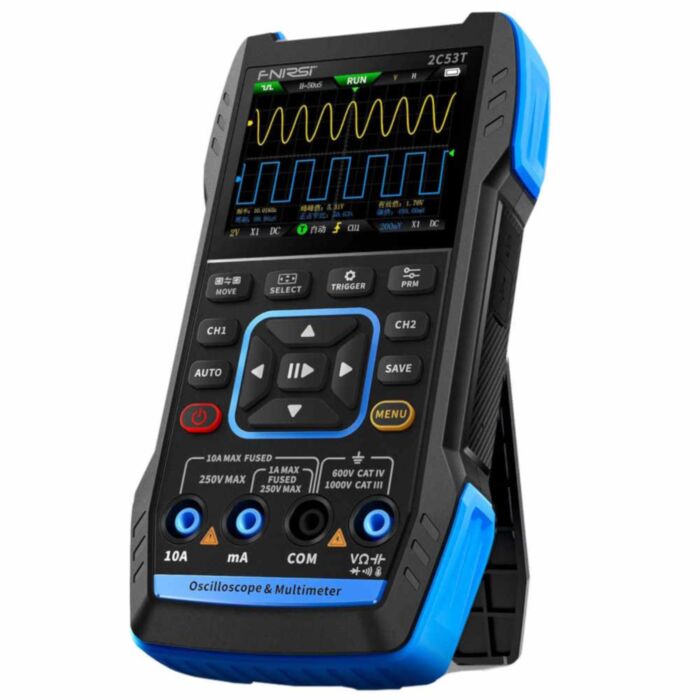

2C53T 3-in-1 Handheld Oscilloscope, Multimeter & Generator

SKU: CE10446 Brand: FNIRSI

Perform portable diagnostics with this robust 3-in-1 oscilloscope, multimeter, and signal generator.

$139.95 AUD, inc GST

$127.23 AUD, exc GST

A comprehensive, three-in-one handheld test instrument that combines a dual-channel 50 MHz digital oscilloscope, a 4.5-digit True RMS multimeter, and a versatile DDS signal generator. It is designed to act as a complete portable electronics instrument for technicians, engineers, and makers who require versatile diagnostics without the bulk of traditional benchtop equipment.

Debugging electronics away from the workbench often involves a juggling act of heavy equipment or settling for lower-precision pocket tools. The 2C53T addresses these issues by combining a high-fidelity waveform capture (250 MS/s) with precision electrical measurement in a single, battery-powered device. Whether you are troubleshooting sensor noise, analysing digital logic on a PCB, or testing audio amplifiers, this unit ensures you have the capability to see signals and measure values simultaneously.

Designed for resilience in real-world environments, the device features a ruggedised ABS housing with a protective silicone sleeve and a clear 2.8-inch IPS colour display. Internally, it utilises a robust FPGA + MCU + ADC hardware architecture, ensuring that the device remains safe and reliable.

Features

High-Fidelity Signal Capture: Visualise complex waveforms with clarity using the 50 MHz analogue bandwidth and 250 MS/s real-time sampling rate, allowing for accurate capture of transient signals and noise.
Versatile Workbench Replacement: Eliminate bench clutter by combining three essential tools; switch instantly between viewing signal integrity on the scope, measuring component values with the 19,999-count True RMS multimeter, or injecting test signals via the generator.
Comprehensive Signal Injection: Test and calibrate circuits efficiently using the built-in DDS function generator, capable of outputting 13 distinct waveforms (including Sine, Square, and PWM) with adjustable frequency and duty cycle.
Advanced Analysis Tools: Perform in-depth diagnostics with support for XY mode, FFT spectrum analysis for frequency domain checks, and automatic measurement of 12 distinct signal parameters (Vpp, Vavg, Freq, etc.).
All-Day Field Autonomy: Stay productive remote from mains power with the integrated 3000mAh lithium battery, offering approximately 6 hours of continuous operation and convenient USB-C recharging.

Specifications

Property	Specification
Display	2.8-inch IPS Colour Screen (320 x 240 Resolution)
Oscilloscope Bandwidth	50 MHz (Dual Channel)
Sampling Rate	250 MS/s (Real-time)
Storage Depth	64 Kpts
Multimeter Counts	19,999 (4.5 Digit) True RMS
Multimeter Functions	AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode, Continuity,
Signal Generator	13 Waveforms (Sine up to 10MHz, others up to 5MHz)
Battery	3000mAh Lithium-ion (USB-C Charging)
Dimensions	167 x 89 x 35 mm

Item Contents

This listing is for the Standard Bundle

2C53T 3-in-1 Instrument
10x Gain Probe
Crocodile Clip Probe
Multimeter Probe
USB-C Charging Cable
Storage Handbag
Instructions

This product is listed in:

Test Equipment>Digital Oscilloscopes
