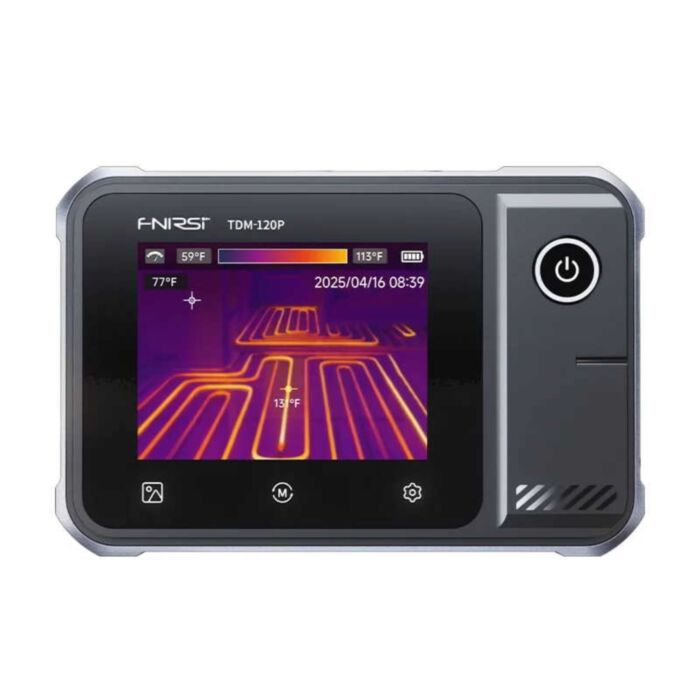

FNIRSI TDM-120P 2-in-1 Thermal Imager & True RMS Multimeter
Spot the hot component, then probe it, without switching tools. Thermal imaging and a precision multimeter in one handheld unit.
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
A pocket thermal camera and a 19,999-count True RMS multimeter, combined in one handheld tool. Find the heat, then measure the cause.
Fault-finding usually means juggling two instruments: one to work out where the problem is, another to prove it. Here, an overheating regulator, a shorted capacitor or a stressed MOSFET shows up as a bright spot on the thermal image. Switch modes and the test leads confirm it with real voltage, resistance or capacitance readings.
A 120×90 vanadium oxide sensor with better than 60 mK thermal sensitivity resolves small temperature differences across a PCB, a fuse box or an HVAC duct. A 2.8" touchscreen, seven colour palettes and one-click image capture make it quick to document what you find. Export images over USB and recharge via USB-C.
Features
- Pinpoints hot spots across a wide 50° field of view, thanks to a 120×90 vanadium oxide thermal sensor
- Picks up subtle temperature differences with <60 mK thermal sensitivity
- Measures from -20 °C to 400 °C, from cold-air leaks to hot power components
- Gives accurate readings on shiny or matte surfaces with emissivity adjustable from 0.01 to 1
- Checks voltage, resistance, capacitance, diodes and continuity with the built-in 19,999-count True RMS multimeter
- Warns you when a target goes outside set limits with the high/low temperature alarm
- Saves thermal images with one press and exports them over USB for reports and records
- Recharges over USB-C, with no batteries to swap
Specifications
| Property | Specification |
|---|---|
| Detector | Vanadium oxide (VOx) microbolometer |
| IR resolution | 120 × 90 |
| Field of view | 50° |
| Frame rate | ≤25 Hz |
| Thermal sensitivity | <60 mK |
| Temperature range | -20 °C to 400 °C |
| Temperature accuracy | ±2 °C or ±2%, whichever is greater |
| Emissivity | 0.01 – 1, adjustable |
| Colour palettes | Arctic, Hot Iron, Iron Red, Rainbow, Lava, Black Hot, White Hot |
| Display | 2.8" LCD touchscreen |
| Multimeter display | 19,999 counts, True RMS |
| DC voltage | 1.9999 V / 19.999 V / 199.99 V / 1000 V, ±(0.5% + 3) |
| AC voltage | 1.9999 V / 19.999 V / 199.99 V / 750.0 V, ±(1% + 3) |
| Resistance | 199.99 Ω – 1.9999 kΩ ±(2.0% + 3); 19.999 kΩ – 19.999 MΩ ±(0.5% + 3) |
| Capacitance | 9.999 nF – 999.9 µF ±(2.0% + 5); 9.999 mF – 99.99 mF ±(5.0% + 20) |
| Diode / continuity | Yes / Yes |
| Current measurement | Not supported |
| Charging | USB-C |
| Operating environment | -5 °C to 40 °C, ≤80% RH |
| Weight (measured) | 624 g (packaged) |
What's Included
- 1x TDM-120P thermal imaging multimeter
- 1x set of multimeter test leads
- 1x USB data cable
- 1x tool bag
- 1x user guide
