Vibrating Mini Motor Disc

SKU: ADA1201

$3.50 AUD, inc GST
$3.18 AUD, exc GST

More Views

Vibrating Mini Motor Disc
3.5 AUD

SKU: ADA1201

$3.50 AUD, inc GST
$3.18 AUD, exc GST
1 reviews 0 5 5
In stock, ships same business day if ordered before 2PM
Delivered by Wed, 18th of Jul
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

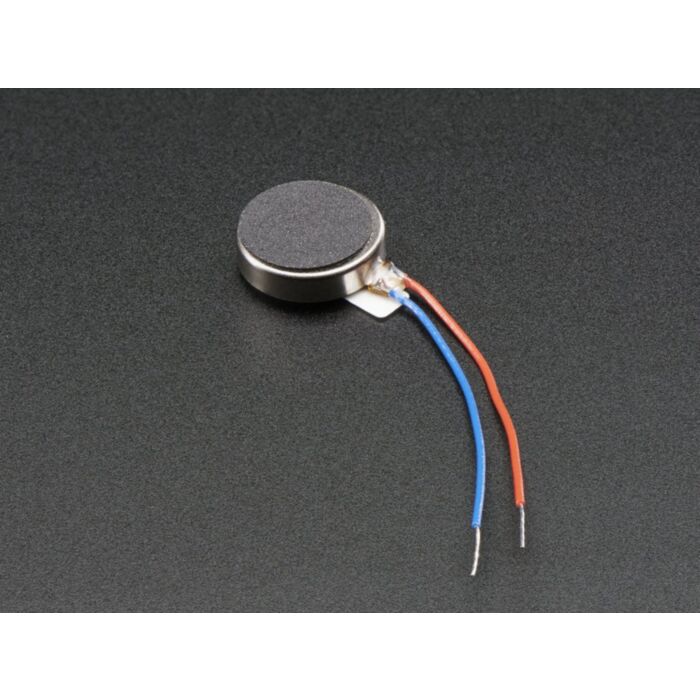

*BZZZZZZZZZZ* Feel that? That's your little buzzing motor, and for any haptic feedback project you'll want to pick up a few of them. These vibe motors are tiny discs, completely sealed up so they're easy to use and embed.

Two wires are used to control/power the vibe. Simply provide power from a battery or microcontroller pin (red is positive, blue is negative) and it will buzz away. Works from 2V up to 5V, higher voltages result in more current draw but also a stronger vibration.

If you want to reduce the current draw/strength (for example, to control it directly from an Arduino pin) try putting a resistor (100 to 1000 ohms) in series. For full power control, a small PN2222 transistor can control a motor easily, some experimentation may be required!

Vibrating Mini Motor Disc (6:47)

Technical Details

  • Dimension: 10mm diameter, 2.7mm thick
  • Voltage: 2V - 5V
  • 5V current draw: 100mA, 4V current draw: 80mA, 3V current draw: 60mA, 2V current draw: 40mA
  • 11000 RPM at 5V
  • Weight: 0.9 gram
