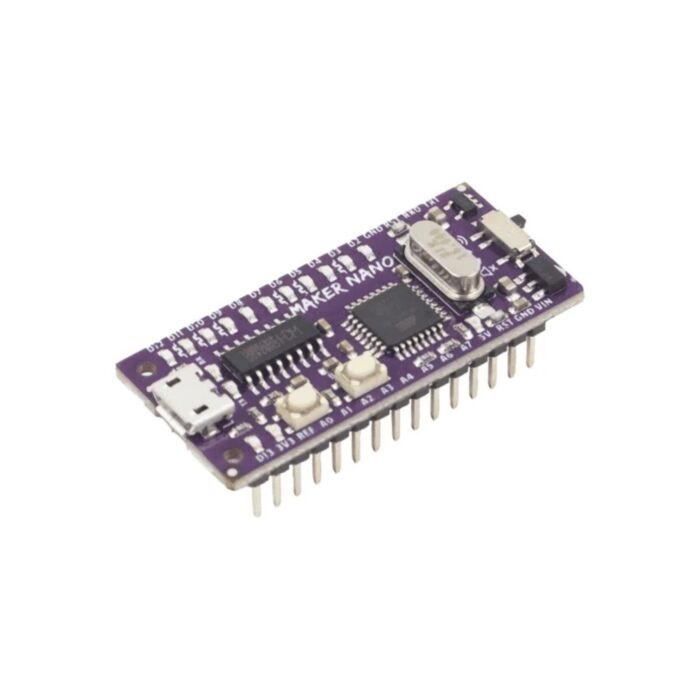

An Arduino Nano-compatible ATmega328P board with 12 onboard GPIO indication LEDs, a programmable push button and a piezo buzzer to make learning and debugging easier.
Available with a lead time
Expect dispatch between Oct 07 and Oct 21
The Maker Nano is an Arduino-compatible board that packs a handful of useful onboard peripherals into the Arduino Nano form factor. It keeps the same ATmega328P microcontroller and pin arrangement as the original Nano, and adds 12 LEDs, a programmable push button and a piezo buzzer, so you can start experimenting straight out of the bag without building a circuit first.
Each digital pin from D2 to D13 has its own LED, which shows you the pin's state at a glance. This is handy for your first sketches and just as useful later on when you're debugging a project. The onboard LEDs can be disabled with a jumper on the underside if you'd rather they stay off.
The Maker Nano is only slightly bigger than an original Arduino Nano (about 1mm longer and 3mm wider) and keeps the same pinout, so it works with most Nano daughter boards and sits neatly on a breadboard. It also has a 5V regulator, so you can power it from a battery or DC adapter on VIN (7-30V) as well as from USB.
USB cable not included.
