Adafruit DRV2605L Haptic Motor Controller

SKU: ADA2305 Brand: Adafruit

The DRV2605 from TI is a fancy little motor driver. Rather than controlling a stepper motor or DC motor, its designed specifically for controlling haptic motors...

$16.35 AUD, inc GST

$14.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $14.27 (exc GST)
25+ $13.83 (exc GST)

The DRV2605 from TI is a fancy little motor driver. Rather than controlling a stepper motor or DC motor, its designed specifically for controlling haptic motors - buzzers and vibration motors. Normally one would just turn those kinds of motors on and off, but this driver has the ability to have various effects when driving a vibe motor. For example, ramping the vibration level up and down, 'click' effects, different buzzer levels, or even having the vibration follow a musical/audio input.

This chip is controlled over I2C - after initialization, a 'string' of multiple effects can be strung together in the chips memory and then triggered to actuate in a row. The built in effects are much much nicer than just 'on' and 'off' and will make your haptic project way nicer feeling.

According to the product page, it can be used with both LRA (Linear Resonance Actuator) and ERM (Eccentric Rotating Mass) type motors but Adafruit have only used it with Adafruit's little vibration pancake ERM.

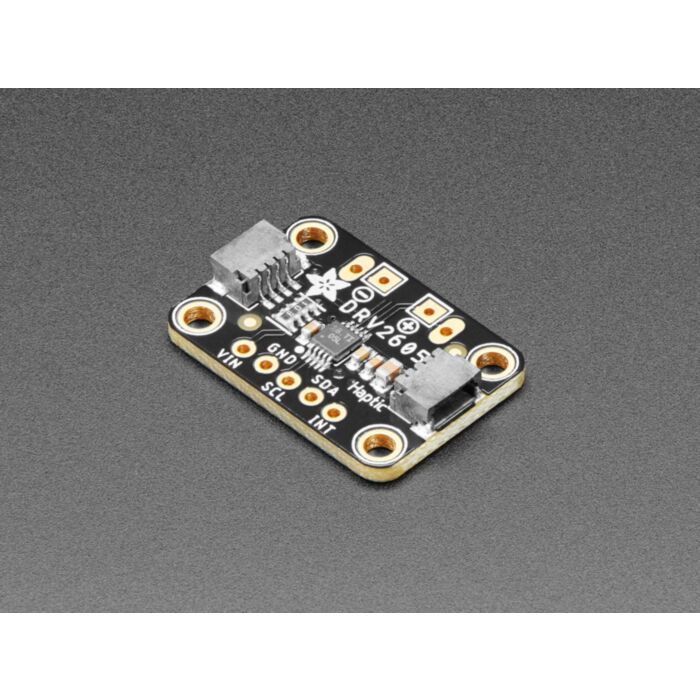

Adafruit put this nice chip onto a breakout board. it works with both 3V and 5V power/logic, Adafruit have code specifically for Arduino but porting it to any I2C-capable processor should be quite simple. Check it out and get buzzing!

Technical Details

Dimensions: 18mm x 17mm x 2mm / 0.7" x 0.7" x 0.1"
1.0g
Datasheet, schematic, PCB files, and Fritzing available in the product tutorial

Revision History:

As of July 11, 2022 - this board now comes in STEMMA QT format. Functionality and schematic remain the same, physical shape has changed to make it plug-and-play, much easier to use
