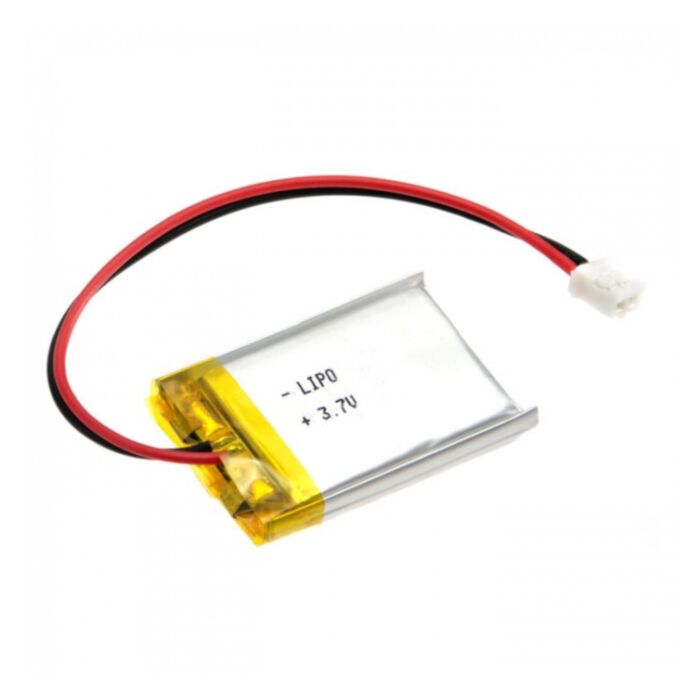

Polymer Lithium Ion Battery (LiPo) 3.7V 400mAh

Make your next project portable with the reliable battery technology that is Polymer Lithium Ion. These batteries have fast charge times, can reliably hold a charge, and come with complete safety circuitry built-in. These batteries are our go-to option for any portable project.

• Power - With a cell voltage of 3.7 Volts, these batteries are perfect for microcontrollers and other low power devices, especially when paired with a good DC/DC regulator for logic level output.
• Protection Circuitry - Built into the battery is an over-voltage, over-current, and minimum voltage protection circuit which makes them even easier to use, although care must be taken when using LiPo batteries. Be sure to only use a specific LiPo charger.
• Charging - Although these cells are rated for 2C continuous discharge, the wiring and connectors are only rated up to 1A, so be sure to take that into account when determining your project requirements.

Remember that like any power source, you should be extra careful not to short the power pins as doing so can damage your battery and cause it to swell/overheat, rendering it unusable and dangerous.

How to use a Lithium Polymer Battery in your project

We've got plenty of experience with Lithium batteries, with most of our projects being powered by them. We've written a guide that will explain the terminology, specifications and practical applications of LiPO batteries in a project:

How to choose and use a LiPO Battery in your project

Our tips and safety considerations when using LiPO batteries

If you need any help with using these batteries, get in touch. We're here to help.

Tech Specification

• 400mAh capacity
• Standard 2-pin JST-PH connector
• 38x25x6mm
• 11g
• 2C continuous discharge
• Great energy retention with low self-discharge rates (<8% per month)
• Reliable under extreme conditions (-10 to 50C)

Documents

• PCM Datasheet
• MSDS
