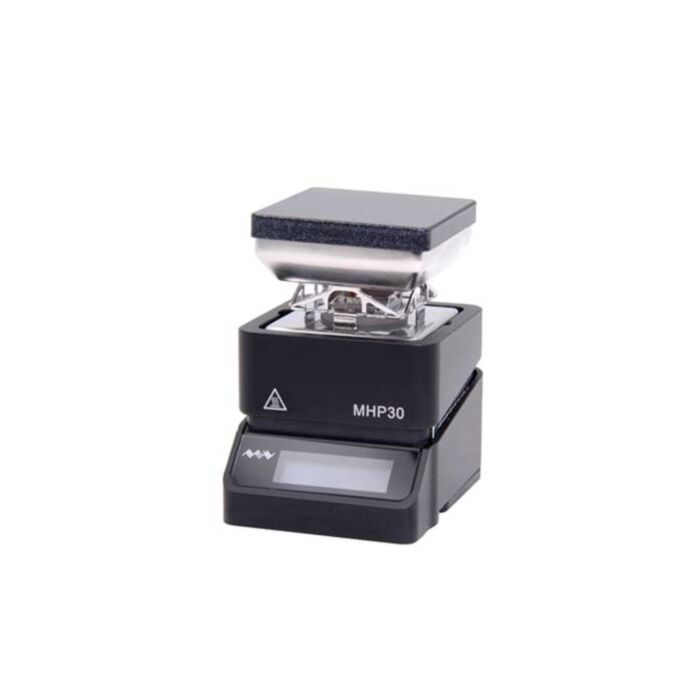

Morning Tools Mini Hot Plate Preheater (MHP30)

Rating:

100% of 100

1 Review

SKU: CE07859 Brand: Miniware

MHP30 Mini Hot Plate Preheater is an ultra-mini smart constant temperature hot plate with pocket size.

$189.95 AUD, inc GST

$172.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

5-10 $165.77 (exc GST)
10+ $160.59 (exc GST)

Recommended Essentials:

USB-C 112W PD Device Power Supply

$99.95

MHP30 Mini Hot Plate Preheater is an ultra-mini smart constant temperature hot plate with pocket size.

Features

MHP30 has a small and exquisite appearance, with a square tower shape and a total height of only 5.2cm (2 inches);
It eliminates redundancy, retains sufficient effective heating area, greatly saves energy and heating time;
MHP30 controller and hot plate can be flexibly separated and replaced;The controller is equipped with an OLED display and two physical buttons (on the back);
A pair of support feet at the bottom can be spread out to better support the whole station;
The hot plate's heating body is made of brass with nano-ceramic coating, smooth on surface and evenly heated;
When using 65W PD power supply, it only takes 150 seconds to heat from 26°C room temperature to 300°C;
The controller has a built-in true color LED that changes color with the rises and falls of the temperature, letting you know the warm and cold at a glance;
MHP30 also has smart modes such as preset temperature, tilt protection, power wake-up and automatic sleep;
Users can set to turn on or off these functions according to their needs.

Specifications

Power: 60W (Max)
Power Input: PD Input
Temperature Stability: ±3%
Temperature Range: 100°C~350°C (Max)
Resistance to Ground: <2Ω
Heating Area: 30mmx30mm
Screen: OLED screen
Power interface: USB Type-C-C Port (requires a power supply, we recommend this one here)
Net Weight: 82g (control part + hot plate)
Certification: Compliant with EU Certification CE FCC

Contents

MHP30 Controller x1
Hot Plate(BS30)x1
Type-C-C Cable x1
Safety Instructions x1

Documents

Note - this is a Mini Hot Plate Preheater. It's GREAT for using reflow profiles on small prototypes and/or for component repair and replacement. Though don't operate it for long periods of time at high temperatures (tens of minutes) as you may degrade the thermal performance of the device and/or see heating errors. Thermal dynamics are complex; so we can't provide you an exact time frame for your specific project. We used them for years on our prototypes and repairs. Love 'em!
