Shield stacking headers for Arduino (R3 Compatible)

SKU: ADA85

$3.50 AUD, inc GST
$3.18 AUD, exc GST

More Views

Shield stacking headers for Arduino (R3 Compatible)
3.5 AUD

SKU: ADA85

$3.50 AUD, inc GST
$3.18 AUD, exc GST
4 reviews 0 5 4.5
In stock, ships today if ordered before 2PM
Delivered by Thu, 28th of Sep
Shipping Offer

“How could something so simple be so useful?”

Adafruit heard once that in the 4th millenium B.C. some guy asked the person who invented the wheel that question.  The person who invented the wheel’s answer, Adafruit were told, was something like “well it’s not actually that simple - it required engineering and innovation and this thing called mathematics that probably hasn’t been discovered yet and blah blah blah…” on and on and on until the guy got called away to go fight a minotaur or something.

Cool story, right? Adafruit mention it because stacking headers are sort of like the wheel to the Arduino civilization - meaning this thing that’s incredibly simple, incredibly useful, but still so brilliant you’re amazed they didn’t exist before the day they started existing.

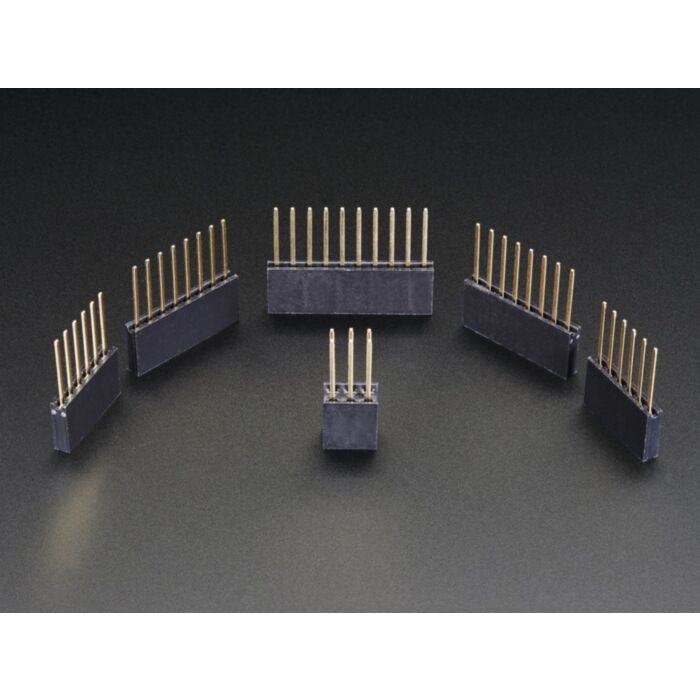

What are they for? Stacking.  You put the headers on top of your Arduino and then you can add shields like our Protoshield or our Motor Shield  or our Proto-Screwshield (pictured above) to get your Arduino doing all the cool things you want it to.  Adafruit's set includes 1x 10-pin header, 2x 8-pin headers, 2x 6-pin headers, and one 2x3 header.

The legs are all 10.5mm long, so after PCB thickness (1.7mm) you have a height of 8.8mm - just enough to clear the Arduino's USB-B connector.  They’re also fully compatible with shields designed for Arduino R3 and the Leonardo.  For shields that don’t use the 10-pin header or 2x3 header, use the 6 or 8 pin ones.

Some experimentation might be necessary to get these working.  For example:

  • You can stack on top of a Proto Shield, but not if there is a breadboard on it
  • You can stack on top of an Adafruit Motor Shield v2
  • You can stack on top of a Wave, NFC/RFID, or GPS shield with no problems
  • You can stack on top of an Ethernet shield, but you'll need two sets of headers to clear the Ethernet jack.
  • You can't stack on top of Adafruit's TFT or LCD shields
  • Some shields use the ICSP (2x3) header in which case you may need to solder in the stacking 2x3

Really, the possibilities are endless, just keep in mind that you may need to do some adjusting of code to handle the multiple devices and that there may be pin compatibilities.


Technical Details

This product is listed in:

Documentation and Resources:
Educational Workshops
  • Arduino Workshop for Beginners
  • Welcome to the Arduino Workshop, where you'll be able to follow our guided course which covers everything you'll need to know in order to create your own Arduino projects and become a leveled up maker. My name is Sam and along with being a maker my...
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • How to Use a Logic Level Shifter/Converter
  • So you’ve got your microcontroller/development board ready to go, you’ve got your sensors and external components and you’re ready to build an IoT device to make the world your slave. But hang on a minute, the sensor you have only o...
  • Arduino with LattePanda
  • Ah, Arduino and LattePanda coming together at last. What could be better? Well along with the fact that your LattePanda is a fully fledged Windows 10 computer so you can program any Arduino board you want as normal, one of the best things about Latte...
  • Potentiometers and the Arduino Uno
  • Variable resistors come in all shapes and sizes, and they all do the same basic job. They allow you precisely control voltage/current flow within a circuit. The most common type of variable resistor we see in DIY electronics is the Potentiometer, or ...
  • Relay Operation and the Arduino Uno
  • If you could operate your switch without physically toggling it on and off, you would open yourself up to an entire section of electronics. Relays are one of the best ways of doing this. A relay is essentially just a switch, controlled by an electrom...
  • Tabot
  • Tabot is a robotic tablet dispenser. It is designed to help elderly people maintain their independence and help anyone who has tablets remember to take them on time.
  • Cosplay Blaster
  • Hey guys! First time poster. I've been working on a blaster for my girlfriend's costume, and I thought I would share it with everyone. When triggered, it plays a selected sound effect and flashes the light. Pretty simple :)
  • Coffee Grinder With Arduino
  • Using a few bits and pieces, this ordinary coffee grinder now has two presets to run the motor for a programmable length of time. The idea being that the grinder running for a set amount of time will deliver a certain amount of coffee each button press meaning the beans can be stored unground, keeping them fresher for longer. I completed this project for a friend, Ian, who lives for coffee. Ian wanted the same functionality in h...
  • The Hipster Coaster
  • We wanted to make a interactive display of the fun that can be had with DIY projects to take to Sydney Mini Maker Faire. We decided to do so by utilising the TinkerKit Braccio from Arduino.org, alongside some 3D Printing ingenuity, for an engaging display for all ages. Enter the Hipster Coaster in all its glory.   All the parts were printed seperately on our family of Lulzbot 3D Printers, later stuck together using a mi...

Product Comments


Customer Reviews

  1. Review by James verified purchaser
    Rating
    100

    This item was used with the UNO plastic case to bring the headers flush with the top of the case. Had to cut the pins in half but works nicely. Recommend this item and case be purchased together. (Posted on 16/09/2017)

  2. Review by Stefan verified purchaser
    Rating
    60

    Delivered as promised. Well packed against damage.
    Haven't used it yet. (Posted on 26/07/2017)

  3. Review by jaison verified purchaser
    Rating
    100

    Good and handy !! (Posted on 21/11/2016)

  4. Review by Terrence - High Quality Product verified purchaser
    Rating
    100

    This kit of Headers is the best that I have used, it has everything that is required to transfer ALL the pins to the next board, the length is excellent for stacking, they give a little bit extra clearance for the slightly bigger components on the male side of the pins. Great value and worked perfectly on my Freescale Boards as well. (Posted on 15/02/2015)
