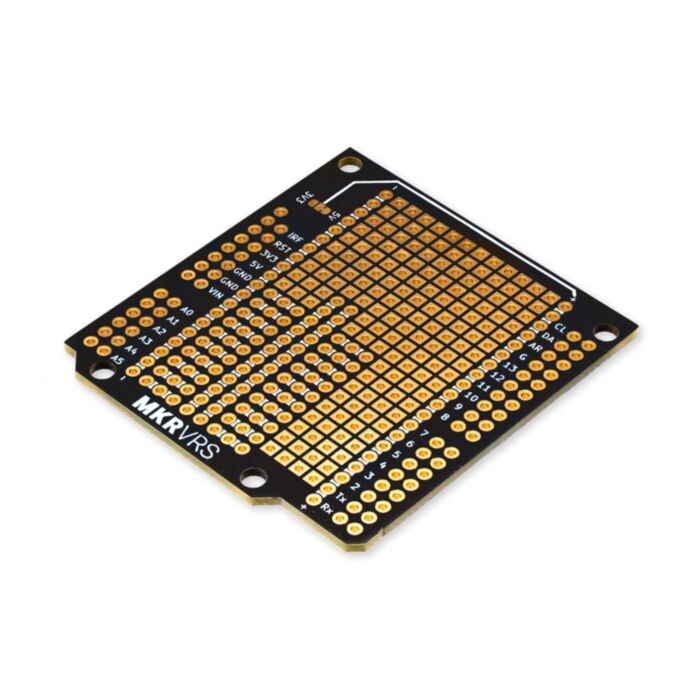

Makerverse Protoboard for Arduino Uno

Rating:

100% of 100

5 Reviews

SKU: CE08237 Brand: Makerverse

A high-quality proto shield for your Arduino Uno projects.

$5.25 AUD, inc GST

$4.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

10-25 $4.01 (exc GST)
25+ $3.44 (exc GST)

Recommended Essentials:

Shield stacking headers for Arduino (R3 Compatible)

$3.80

Male Pin Header 2.54mm (1x40)

$0.45

Prototype in style with the Makerverse™ Protoboard for Arduino Uno. These are high-quality protoboards finished with discreet, black solder mask to add an extra layer of professionalism to your work. Each Uno pin is broken out to a labelled pad for easy connection to the prototyping area, which features mini-breadboard and point-to-point areas. There's a dedicated ground rail and a selectable power rail; Solder to select 3.3V or 5V (default) - just make sure to never solder both. White traces indicate the links between the round pads, while the square pads are all separate for point-to-point prototyping.

To get started: Solder your favourite headers to the protoboard. Stackable headers are great if you expect you might want to stack another shield on top of this one.

Labels for each GPIO
Gold finish solders beautifully
Selectable power rail (3.3 or 5V)
Mini-breadboard and point-to-point prototyping
Through-hole plated PCB - pads won't lift with rework
Designed and supported in Australia by Core Electronics

Tech Specs:

294 tie points
Dimensions: 65x56mm
Mounting Holes to match Arduino Uno
Plated through-holes: 1mm diameter
ENIG (gold) finishing

Resources:

Hardware Repo

Makerverse Overview

Makerverse hardware is designed for makers, by makers. We're making the tools and modules we think are the most useful to electronics enthusiasts and people that just want to get their projects done. As experienced makers ourselves, we're building in the features and design considerations that we find most valuable and have wished for in other modules.

All Makerverse devices are products designed by our team in Newcastle Australia. We manufacture the modules here as well.

"Makerverse" and the Makerverse Logo are trademarks of Core Electronics Pty Ltd.

This product is listed in:

Arduino>Prototyping
Makerverse>Prototyping
