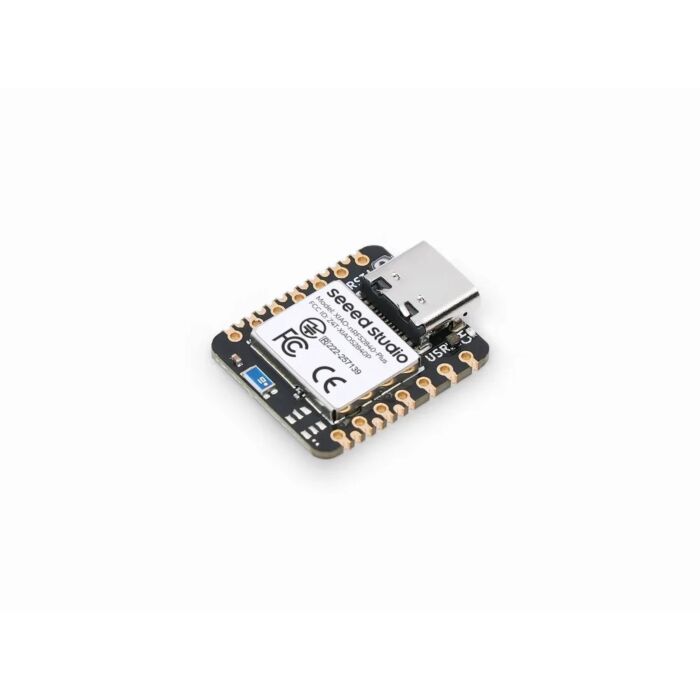

Seeed Studio XIAO nRF52840 Plus

SKU: SS102010672 Brand: Seeed Studio

The Seeed Studio XIAO nRF52840 Plus brings nine extra SMD castellated pins to the popular Bluetooth-enabled XIAO nRF52840, keeping Bluetooth Low Energy 5.4, NFC and low power consumption in the same thumb-sized form factor.

$18.25 AUD, inc GST
$16.59 AUD, exc GST

Available with a lead time
Expect dispatch between Aug 17 and Aug 17

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Features

  • Versatile Microcontroller: Incorporates the Nordic nRF52840 chip with FPU, operating up to 64 MHz, supported by Arduino / CircuitPython / MicroPython
  • Nine Extra GPIOs: Redesigned 1.27mm-pitch castellations and pad layout on the back bring the total to 20 GPIO, for expanded I/O via board-to-board SMD soldering
  • Wireless Capabilities: Implement Bluetooth Low Energy 5.4 and Bluetooth Mesh with onboard antenna, also provide NFC connectivity
  • Elaborate Power Design: Provide ultra-low power consumption as 5 µA in deep sleep mode, with the onboard BQ25101 supporting lithium battery charge management
  • Thumb-sized Design: 21 x 17.8mm, Seeed Studio XIAO series classic form-factor with 2.54mm headers, suitable for wearable devices and space-constrained projects
  • Drop-in Compatible: Same backside pad layout as the original XIAO nRF52840, so existing XIAO expansion boards and add-ons work as-is

Specifications

  • Processor: Nordic nRF52840, 32-bit ARM Cortex-M4 with FPU, 64 MHz
  • Wireless: Bluetooth Low Energy 5.4 / Bluetooth Mesh / NFC
  • Memory: 256 KB RAM, 1 MB on-chip flash, plus 2 MB onboard flash
  • Interfaces: 1x I2C, 2x UART, 2x SPI, 1x I2S
  • GPIO: 20 pins (9 extra SMD castellations), 20 PWM-capable, 6 analog inputs
  • Battery Charge Chip: BQ25101
  • Onboard: 1x reset button, 3-in-one LED (user and charge indicator)
  • Dimensions: 21 x 17.8mm
  • Programming Languages: Arduino, MicroPython, CircuitPython

Pin headers are supplied unsoldered. Need onboard sensors instead of extra I/O? The Seeed Studio XIAO nRF52840 Sense carries an extra 6-axis IMU and a PDM microphone.
