Seeeduino XIAO Expansion board

Skip to the beginning of the images gallery

Seeeduino XIAO Expansion board

Rating:

100% of 100

SKU: SS103030356 Brand: Seeed Studio

A functional expansion board for Seeeduino XIAO of only half Raspberry Pi 4 size. With OLED display, embedded RTC, expandable memory mini SD card slot,...

$28.40 AUD, inc GST

$25.82 AUD, exc GST

Quantity Discounts:

10-25 $24.78 (exc GST)
25+ $24.01 (exc GST)

Out of Stock

Recommended Essentials:

Seeeduino XIAO (Pre-Soldered)

$13.60

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

Key Features

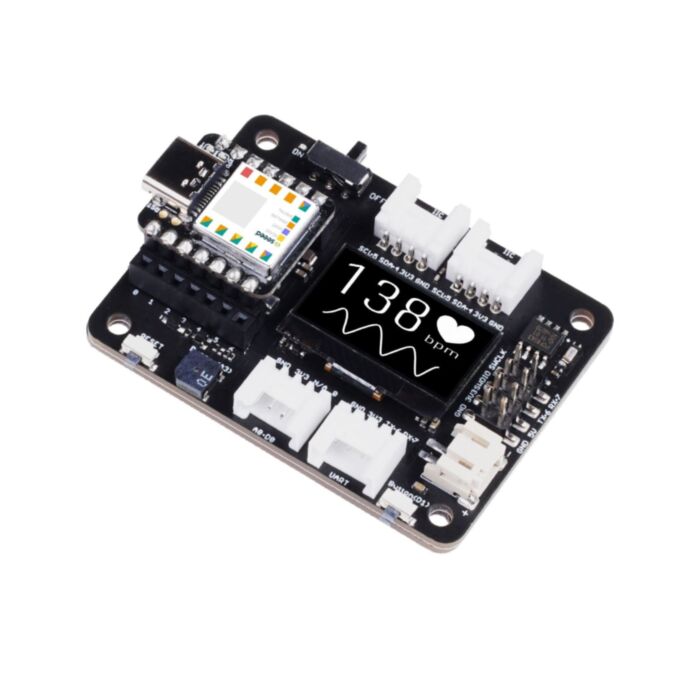

Quick Prototyping: Easy debug and Reset with RESET button and SWD pin led out to the male header. 0.96” OLED, enables visual data to display without PC serial monitor.

Rich peripherals: OLED display, RTC, expandable memory space, passive buzzer, user button, on board battery management chip… One board on hand to explore infinite possibilities of Seeeduino XIAO.

No Soldering Needed: All pin led out. Convenient plug and play Grove connectors support multiple data protocols, including IIC, Uart, Analog/Digital.

Circuit Python Supported: Well supports circuit python. Mini SD card slot enables memory space expand, making it possible to allocate more libraries needed in prototyping and project building.

Mini Size: Compact and elegant with only half Raspberry Pi 4 size, perfect for tiny and wearable projects.

Description

Seeeduino XIAO Expansion Board is a powerful functional expansion board for Seeeduino XIAO of only half Raspberry Pi 4 size. It enables build prototype and project in an easy and quick way. With its rich peripherals, you could explore infinite possibilities of Seeeduino XIAO. Circuit python is also well supported by this board.

Many users adore Seeeduino XIAO because of its mini size and elegant design, so we try our best to keep the size as mini as we could when persuing the powerful function and rich interfaces. As you could see, the board is of only half Raspberry Pi 4 size.

Rich peripherals on board including:

OLED display: Visual data display without connecting to PC, which enables debug in a more efficient way, and builds application such as a sensor hub, data monitor system, .etc
RESET button: No more jumper wire and short circuit, easy reset with just one click.
SWD debug: SWD pin led out as male pin header, making debugger connection and firmware download much easier.
High precision RTC: High precision real-time clock with battery backup, enable maintain accurate time when the main power is turned off.
Expandable memory: With a MicroSD card slot on the back, no worry about the memory limit any more when adding libraries and using circuit python.
User button: Besides the RESET button, also provide another user-defined button.
Passive buzzer: Same passive buzzer on Wio Terminal, with which you could change the PMW frequency to award different beep sound to get a "buzzer music".
Grove connectors: All pin led out, plug and play grove connectors support common data protocols (Grove IIC2, Grove UART1, A0/D0 Grove*1)
Lipo Battery Charging: JST2.0mm standard lipo battery connector and battery management system, supports both USB and lipo battery power supply, and easy onboard battery recharge.
5V servo connector: 5V output led out to male header for 5V servo and sensor connection.

Though with all these rich peripherals, you may find Seeeduino XIAO Expansion Board also has very high cost performance as Seeeduino XIAO does.

Seeeduino XIAO has become one of the hottest products in the Seeeduino series since its release. You may adore its small size and elegant design, powerful CPU powered by SAMD21, or rich interfaces of GPIOs, but no matter what reason makes Seeeduino XIAO attract to you, now you have one more reason now - Seeeduino XIAO Expansion Board, which will definitely help you to explore infinite possibilities with Seeeduino XIAO.

Application

SWD debug
Rapid prototyping
Data display
Mini Size Project

Specification

Item	Detail
Power Supply	5v / 3.7V Lithium Battery
RTC chip	PCF8563T/5
RTC battery	CR1220
Expandable memory	MicroSD Card
Screen	0.96 OLED display
Other External Equipment	Passive buzzer, user button, 5Vservo connector
charging current	Max: 460mA
Grove Interface	Grove I2C 2, Grove UART 1, A0/D0 Grove *1

Pinout

Supported Boards

Part list

Seeeduino XIAO expansion board	X 1

Note

Seeeduino XIAO and battery is not included in this product, please click here if you need to get a Seeeduino XIAO.
