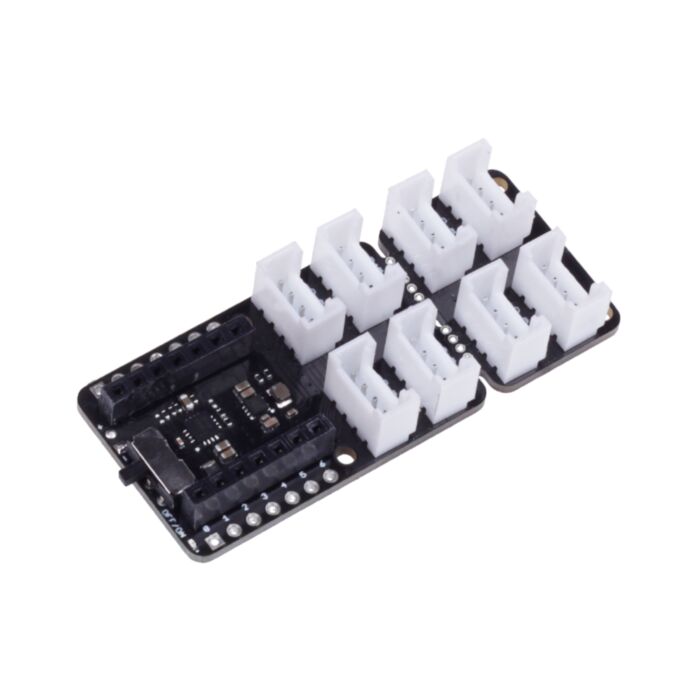

Grove Shield for Seeeduino XIAO - with embedded battery management chip

SKU: SS103020312 Brand: Seeed Studio

Grove Shield for Seeeduino XIAO is a plug-and-play Grove extension board for Seeeduino XIAO. With the on-board battery management chip and battery bonding...

$9.55 AUD, inc GST

$8.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of May

Quantity Discounts:

10-25 $8.34 (exc GST)
25+ $8.07 (exc GST)

Seeeduino XIAO has been becoming more and more popular in our community since it was released! As we have Grove Shield for many mainstream boards for easy test and better use of our Grove modules, many fans of Seeeduino XIAO have been asking whether we will have a Grove Shield for it, the much-anticipated Grove Shield for Seeeduino XIAO is now on board!

It’s a plug-and-play Grove extension board for Seeeduino XIAO. This Shield helps you get rid of jumper wires and soldering work by pulling out the pins of the Seeeduino XIAO and expands to 8 Grove connectors, including two Grove IIC and one UART. It acts as a bridge for Seeeduino XIAO and Seeed's Grove system, which provides 300+ of different Grove modules including sensor, actuator, communication, display, etc. No more jumper wires and soldering work, you could enjoy creating more projects with Seeeduino XIAO easily and quickly.

With the on-board battery management chip and battery bonding pad, you could easily power your Seeeduino XIAO with lithium 3.7V battery and recharge it, making your projects, especially wearables ones, more flexible and in portable. You could even break the board through the onboard PCB stamp holds according to your actual needs of the project (only 25*39mm in dimension after break-off), making it smaller than smaller.

As an extension board, the Grove Shield for Seeeduino XIAO also pulls all 14 pinout from Seeeduino XIAO, and its on-board power switch and charging status indicator light makes it more user-friendly. The Shield even reserves the SPI-Flash bonding pad for an advanced developer who may need to add Flash to Seeeduino XIAO to expand its memory space, providing Seeeduino XIAO with more possibilities.

If you are a fan of Seeeduino XIAO already, you would not miss this Grove Shield; if you are hesitating to have one because of the scare of soldering works, it is the chance to start the wonderful experience with Seeeduino XIAO now!

Note: A pair of non-soldered 7-pin headers are accompanied in the product of Seeeduino XIAO. You could solder them before connecting Seeeduino XIAO with this Shield by plugging the soldered pin headers into the female headers on the Shield.

Feature

On-board Lithium Battery Charging and Management Function
Grove connectors (Grove IIC*2, Grove UART*1), all 14 GPIO led out
Compact and Breakable Design
SPI-Flash Bonding Pad Reserved
On-board Power Switch and Charging Status Indicator Light

Application

Wearable devices
Rapid prototyping
Grove modules testing
Projects require small size

Specification

Parameters
values
Power Supply5V / 3.7V Lithium Battery
Load Capacity800mA
Charging current400mA (Max)
Operating Temperature- 40°C to 85°C
Storage Temperature-55°C to 150°C
Grove InterfaceGrove * 8 (IIC*2 / UART*1)

Demo

Pinout

Supported Boards

Part list

Grove Shield for Seeeduino XIAO1
1*7pins male header2

Note: This product does not include a Seeeduino XIAO, please click here if you need one.

What is Grove?

Grove makes it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering are required. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. Not only are these open hardware, but we also have open-source software.

Note: For all Grove users (especially beginners), we provide you with the guidance of operation. Please read the instructions through the official website before your using the product.
