Mega 2560 R3 (Arduino-Compatible)

SKU: 018-MEGA-R3

$24.41 AUD, inc GST
$22.19 AUD, exc GST

More Views

Mega 2560 R3 (Arduino-Compatible)
24.41 AUD

SKU: 018-MEGA-R3

$24.41 AUD, inc GST
$22.19 AUD, exc GST
9 reviews 0 5 5
In stock, ships today if ordered before 2PM
Delivered by Mon, 24th of Jul
Shipping Offer

If you're looking to level up your Arduino project, the Mega 2560 is a great place to start. It's based on the Atmega2560 chip which provides a huge number of IO pins and functionality:

  • 54 Digital Input/Output pins (14 with hardware PWM capability)
  • 16 Analogue Inputs
  • 4 UART ports
  • USB connectivity
  • ICSP header

Whilst being a much larger and more capable board, the Mega2560 still clocks at 16MHz, just like the Uno, which means it won't run faster than a Uno, but you do get a lot more functionality to use within those 16MHz. Something to note about the Mega2560 is the use of a 16U2 which is programmed as a USB-serial converter rather than a standalone FTDI chip as many previous Arduino boards used.

This is the revision 3 model board which contains the following changes:

  • 1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino® Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
  • Stronger RESET circuit.
  • Atmega 16U2 replaced the 8U2.

Tech Specs:

  • 100% compatible with genuine Arduino Mega2560
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-20V
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 256 KB of which 8 KB used by bootloader
  • SRAM: 8 KB
  • EEPROM: 4 KB
  • Clock Speed: 16 MHz

*Note that this is a generic Arduino Compatible board, however, we stock the genuine Arduino Mega2560 as well*

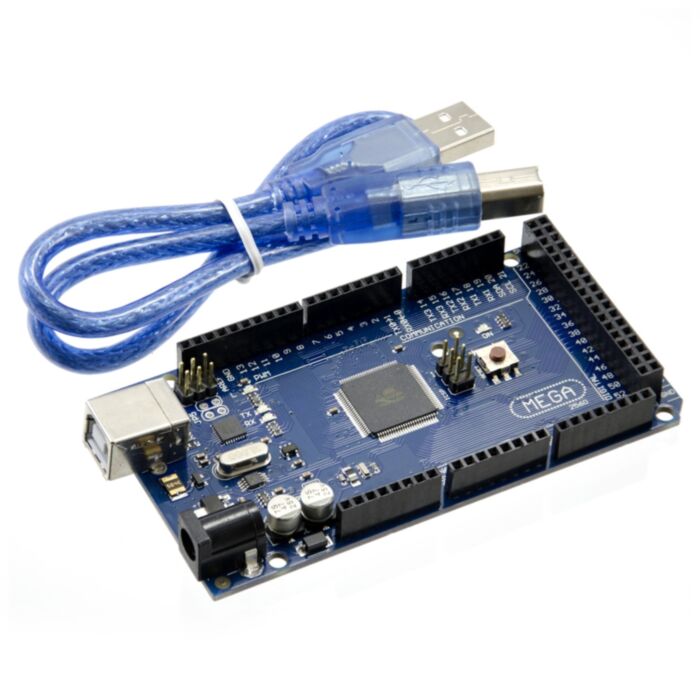

What's in the Box:

  • Arduino compatible Mega2560 board
  • USB cable
