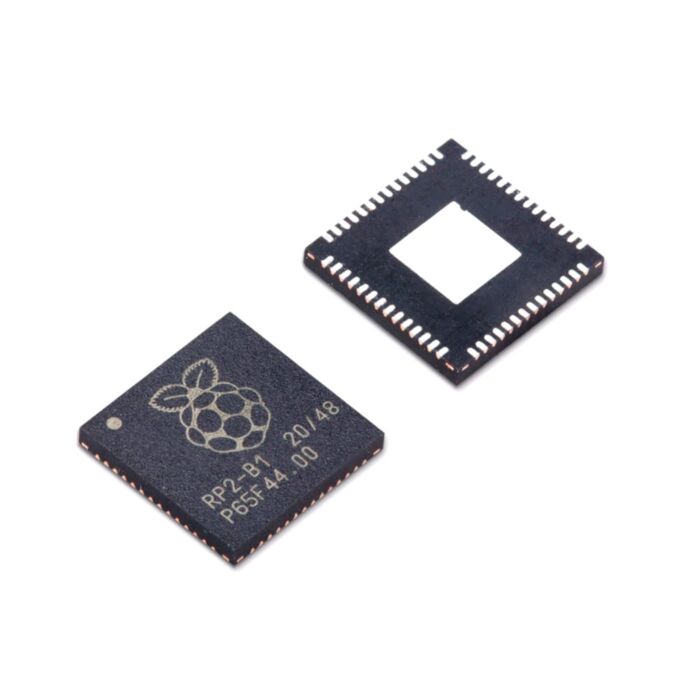

Raspberry Pi RP2040 Microcontroller

Rating:
100% of 100
SKU: CE07840 Brand: Raspberry Pi
RP2040 is Raspberry Pi's first microcontroller and it features Dual-core Arm Cortex-M0+ with 133Mhz Clock, 264KB SRAM, UART, SPI and I2C support. Along with a whole lot more.
$1.50 AUD, inc GST
$1.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 05th of Jul

Quantity Discounts:

  • 10+ $1.29 (exc GST)
- +

4763 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Raspberry Pi's first microcontroller, RSP2040, is an impressive modern alternative that has thorough documentation and impressive features. There is SDK support for MicroPython and C/C++ and already a wide range of development boards to get started with (Raspberry Pi Pico is the official).

With the chip available in volume at low cost, RP2040 will be a solid contender for industrial applications and maker projects alike.

Note - this product is packaged in tape format.

Features

  • Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
  • 264KB on-chip SRAM
  • 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
  • 1 × USB 1.1 controller and PHY, with host and device support
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support
  • Supported input power 1.8–5.5V DC
  • Operating temperature -20°C to +85°C
  • Drag-and-drop programming using mass storage over USB
  • Low-power sleep and dormant modes
  • Accurate on-chip clock
  • Temperature sensor
  • Accelerated integer and floating-point libraries on-chip
