IR40 Smart Laser Rangefinder

SKU: CE10608 Brand: FNIRSI

Instantly capture precise spatial dimensions and map project layouts directly to your smartphone. Delivering millimetre accuracy over a 40-metre range with seamless Bluetooth app integration.

$38.40 AUD, inc GST

$34.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

This product incorporates a laser system. Before purchasing or using laser equipment (including modules, components, or complete machines such as laser cutters and engravers), please consider the following:

These products are intended for professional, educational, industrial, or supervised workshop environments.
Operators should be appropriately trained and understand laser safety practices, including enclosures, signage, PPE, and safe operating procedures where applicable.

A declaration of use will need to be submitted during checkout.

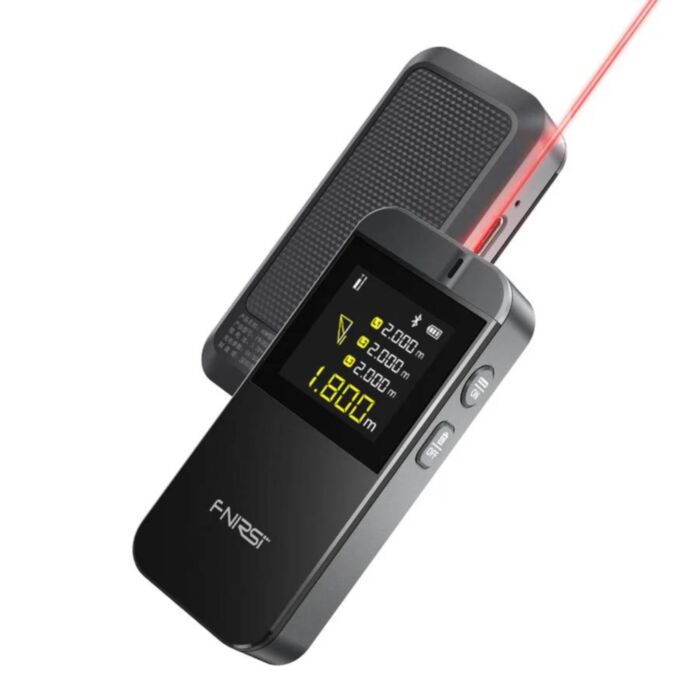

The FNIRSI IR40 is a compact, smart laser rangefinder designed to provide high-precision distance, area, and volume measurements up to 40 metres.

Traditional tape measures are cumbersome for long distances, and manual area calculations can easily introduce critical errors into a project. This device solves that by offering instantaneous, millimetre-accurate readings and automatically computing complex geometries, significantly speeding up mapping and layout tasks for your workshop or next custom build.

Housed in a rugged, IP54-rated enclosure with a built-in rechargeable lithium-ion battery, it is engineered for rigorous daily use. Its seamless Bluetooth integration allows makers to instantly transfer spatial data to their smartphones, ensuring exact real-world dimensions are captured effortlessly for CAD modelling or 3D printing preparation.

Features

Log and visualise measurements instantly with the smart Bluetooth app linkage, which allows you to draw and calculate dimensions directly over photos of your workspace.
Read your data easily from any angle using the 2.0-inch high-definition LCD screen, equipped with a 360° gravity sensor that auto-rotates the display to suit your orientation.
Eliminate complex job-site maths by utilising the built-in calculation modes, which automatically compute area, volume, and Pythagorean distances with a few clicks.
Rely on continuous operation with the built-in 400mAh USB-C rechargeable battery, capable of performing up to 3000 measurements on a single charge.

Specifications

Property	Specification
Measurement Range	0.05m to 40m
Measurement Accuracy	±2mm
Resolution	1mm
Laser Type	Class II, 620-670nm
Measurement Modes	Single, Continuous, Area, Volume, Pythagorean
Battery	400mAh Li-ion Polymer (USB Type-C Rechargeable)
Display	2.0-inch LCD with 360° auto-rotation
Durability Rating	IP54 (Dust and splash resistant)
Physical Dimensions	79mm x 34.5mm x 19mm
