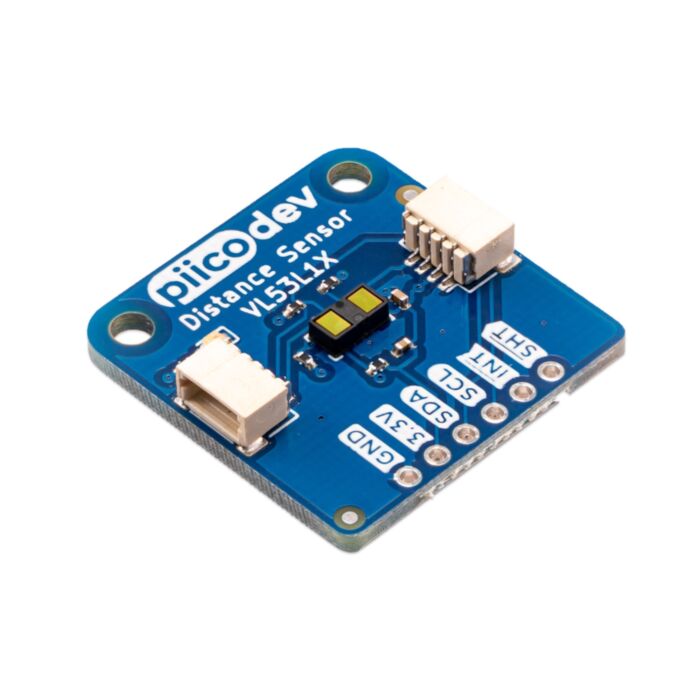

PiicoDev Laser Distance Sensor VL53L1X

Rating:
100% of 100
SKU: CE07741 Brand: PiicoDev Guides (5)
CE Original
The PiicoDev® Distance Sensor is a long-distance laser-ranging sensor that uses Time-of-Flight (ToF) to accurately measure distances up to 4m.
$23.15 AUD, inc GST
$21.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 4-12 $19.99 (exc GST)
  • 12+ $18.95 (exc GST)
  • 50+ $17.89 (exc GST)
- +

113 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The PiicoDev® Distance Sensor is a long-distance laser-ranging sensor that uses Time-of-Flight (ToF) to accurately measure distances up to 4m. Once you have this sensor dialled-in you can measure distances accurately down to the millimeter. These sensors work best indoors.

  • Small size, millimetre precision
  • Can be protected behind many cover-window materials.
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics

Getting Started Guides

Technical Specifications

  • VL53L1X Sensor:
    • Default I2C address: 0x29
    • Typical absolute ranging error ±20mm
    • Typical repeatability: ±1%
  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 2x M2.5
  • Operating Voltage: 2.6 to 3.5V

Resources:

Also available are PiicoDev Starter Kits - level up your projects by learning how to use a wide range of modern sensors and outputs.

Note: This module may arrive with a protective film over the sensor. Carefully remove this film before use for most accurate results. Refer to the product images to determine if your sensor has arrived with the protective sensor cover in place.

PiicoDev Distance Sensor VL53L1X


PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
