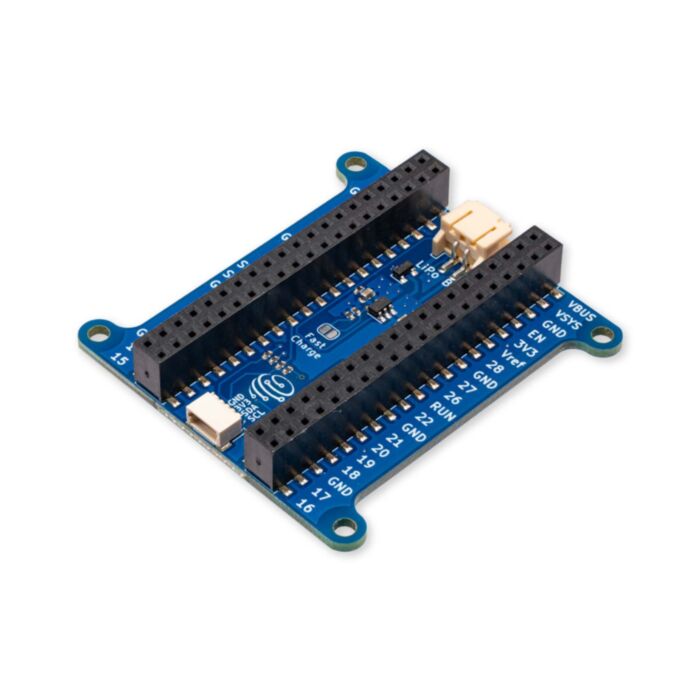

PiicoDev LiPo Expansion Board for Raspberry Pi Pico

Rating:
99% of 100
SKU: CE07693 Brand: PiicoDev Guides (5)
CE Original

The PiicoDev® LiPo Expansion Board for Raspberry Pi Pico is a great way to start experimenting with Raspberry Pi Pico/RP2040. Use the on-board PiicoDev connector to quickly and easily connect with the PiicoDev family of sensor modules without soldering.

$8.70 AUD, inc GST
$7.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 4-12 $7.52 (exc GST)
  • 12+ $7.12 (exc GST)
  • 50+ $6.73 (exc GST)
- +

499 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The battery connector works only with single-cell LiPO batteries - see the recommended essential products for some inspiration. Never connect Alkaline or NiMH batteries to this connector.

The PiicoDev® LiPo Expansion Board for Raspberry Pi Pico is a great way to start experimenting with Raspberry Pi Pico/RP2040. Use the on-board PiicoDev connector to quickly and easily connect with the PiicoDev family of sensor modules without soldering. Each GPIO is broken out to a female-header with labels visible on the top surface. Four mounting holes make it easier to mount your Pico securely in your next project. The on-board charge LED illuminates during charging and will turn off when charging is complete. If no LiPo cell is connected the charge LED may be on or off.

  • Breaks out each Pico pin, with handy labels
  • Take your project on the go with on-board LiPo battery charging (not suitable for Alkaline or NiMH batteries)
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • Manufactured and supported in Australia by Core Electronics

Raspberry Pi Pico is not included - click here to buy one with pre-soldered pins (pointing down); or if you're comfortable soldering pins yourself, get one without pins

Technical Details

  • Dimensions: 51x51mm
  • M2.5 mounting holes
  • Charge current: approx 220mA / 440mA (when Fast Charge jumper is soldered)
  • PiicoDev connector: I2C0 (SCL:Pin 9, SDA:Pin 8)
  • PiicoDev connector pinout:
    • 1 GND
    • 2 3.3V
    • 3 SDA
    • 4 SCL
  • The I2C Bus presented at the PiicoDev connector contains series 120Ohm resistances to prevent destructive signal undershoot. Refer to the schematic for more information. To operate without these series resistors, users may connect directly to the GPIO instead.

Resources

PiicoDev Adapters are available in these configurations:

Also available are PiicoDev Starter Kits - level up your projects by learning how to use a wide range of modern sensors and outputs.


PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.
