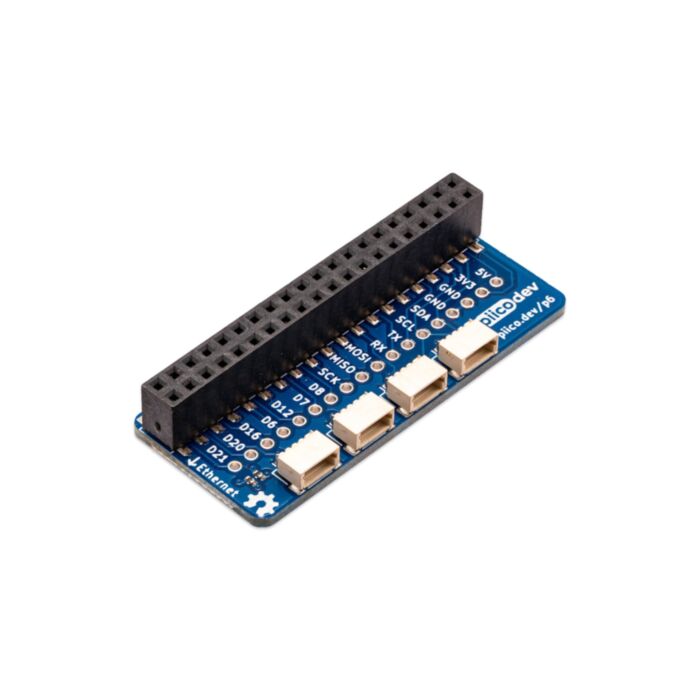

PiicoDev Adapter for Raspberry Pi

Rating:
97% of 100
SKU: CE07690 Brand: PiicoDev Guides (5)
CE Original
The PiicoDev® Adapter for Raspberry Pi is a great way to connect sensors to your Raspberry Pi without soldering.
$4.25 AUD, inc GST
$3.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $3.71 (exc GST)
  • 25+ $3.59 (exc GST)
- +

168 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The PiicoDev® Adapter for Raspberry Pi is a great way to connect sensors to your Raspberry Pi. Use the on-board PiicoDev connectors to quickly and easily connect with the PiicoDev family of sensor modules without soldering. If you're connecting to a Pi 400 we recommend using a GPIO extension cable.

  • Rapid prototyping with solderless connections
  • Other useful pins are broken out
  • Compatible with all 40-pin Raspberry Pi
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • Manufactured and supported in Australia by Core Electronics

What's Included

  • 1x PiicoDev Adapter for Raspberry Pi
  • 1x 2x20 Stackable Header (Extra long pins) - for compatibility when using eg. a Raspberry Pi 5 with an active-cooler mounted.

Technical Details

  • Dimensions: 22x51mm
  • PiicoDev connector pinout:
    • 1 GND
    • 2 3.3V
    • 3 SDA
    • 4 SCL
  • The I2C Bus presented at the PiicoDev connector contains series 120Ohm resistances to prevent destructive signal undershoot. Refer to the schematic for more information. To operate without these series resistors, users may connect directly to the GPIO instead.

Resources



Also available are PiicoDev Starter Kits - level up your projects by learning how to use a wide range of modern sensors and outputs.



PiicoDev Adapters are available in these configurations:




PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
