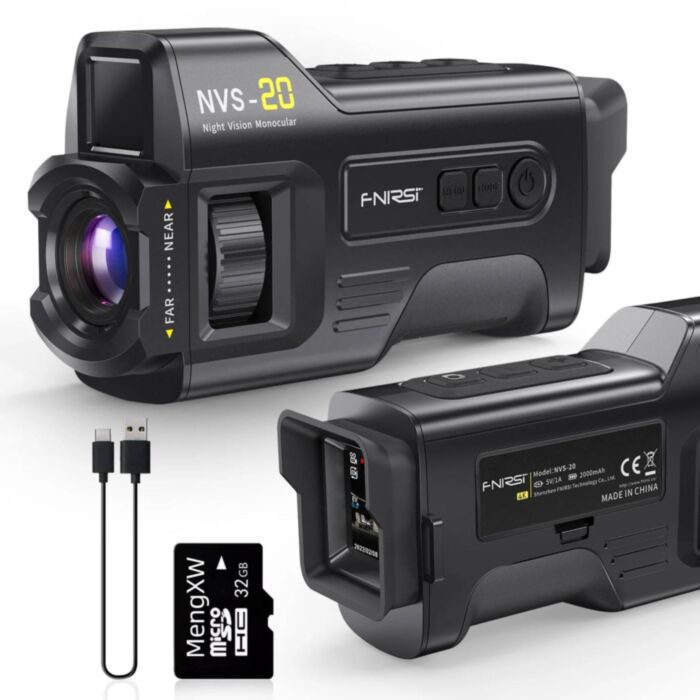

NVS-20 Monocular Night Vision Device
Record 4K video and 36MP images in total darkness at distances up to 300 metres. This features an active 850nm infrared illuminator and 6x electronic zoom for continuous nocturnal observation.
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
For next-day delivery, the shipping address must
be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed
before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost
pickup timings and order verifications. eParcel Express is typically a 1-day service within the
AusPost next-day network, though it is sometimes 2+ days.
The FNIRSI NVS-20 is a compact, high-definition digital night vision monocular designed to provide clear visibility in complete darkness and low-light environments. Equipped with a 25mm objective lens and an 850nm infrared illuminator, this device allows users to digitally capture 4K video and 36MP still images, making it an excellent tool for nocturnal observation, security, and wildlife monitoring.
Traditional optical night vision relies heavily on ambient light amplification, rendering it largely ineffective in pitch-black conditions. The NVS-20 solves this limitation by utilising active infrared illumination, granting you the ability to see up to 300 metres in total darkness without giving away your position. Whether you are tracking nocturnal wildlife, conducting nighttime property inspections, or simply navigating off-grid, this active IR system ensures you are never left in the dark.
Engineered for rugged outdoor use, the NVS-20 features an IPX6 water resistance rating and a robust handheld form factor weighing just 240 grams. It is powered by a standard 18650 lithium-ion battery and recharges via a modern 5V/1A USB Type-C port, allowing makers and explorers to easily keep it powered using standard power banks during extended field operations. It also includes a standard tripod mounting point for stable, high-magnification viewing.
Key Features
- Observe targets up to 300 metres away in complete darkness thanks to the powerful, adjustable 850nm infrared illuminator.
- Capture exceptional detail for documentation or sharing with native 4K (3840 x 2160) video recording and 36MP high-resolution photography capabilities.
- Inspect distant subjects clearly without losing image quality by utilising the 6x electronic zoom on the high-definition 1.54-inch IPS colour display.
- Keep your gear running in the field indefinitely by recharging the internal 18650 battery via any standard USB Type-C mobile power bank.
- Enjoy the peace of mind of using official OEM hardware, complete with a 32GB TF memory card right out of the box so you can start recording immediately.
Technical Specifications
| Property | Specification |
|---|---|
| Model | NVS-20 |
| Device Type | Monocular Night Vision |
| Objective Lens Diameter | 25mm |
| Electronic Zoom | 6x |
| Display | 1.54-inch HD IPS Screen |
| Observation Distance (Total Darkness) | Up to 300m (Max) |
| Infrared Illuminator | 850nm |
| Max Video Resolution | 4K (3840 x 2160) |
| Max Photo Resolution | 36MP |
| Storage | 32GB TF Memory Card (Included) |
| Power Supply | 3.7V 18650 internal lithium battery |
| Charging Interface | 5V/1A USB Type-C |
| Water Resistance | IPX6 |
| Operating Temperature | -5°C to 40°C |
| Dimensions | 152mm x 42mm x 82mm |
| Weight | Approx. 240g |
