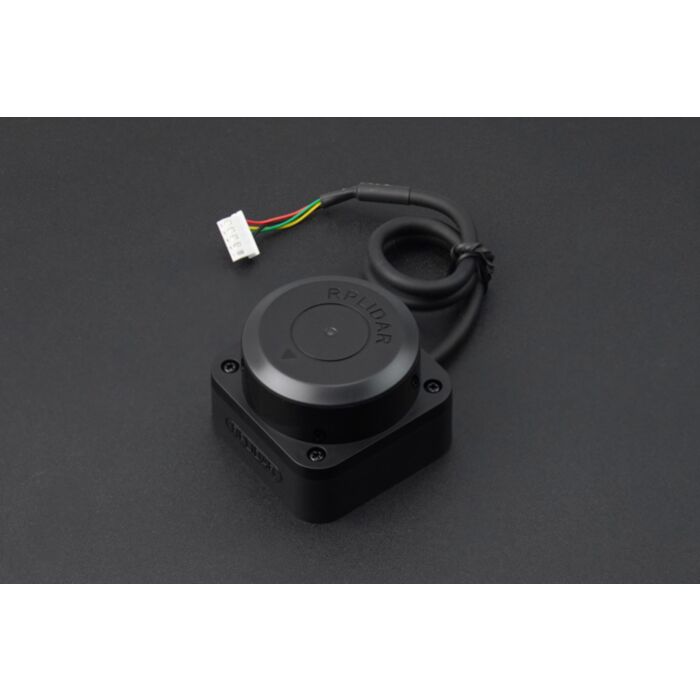

RPLiDAR C1 - DTOF LiDAR 360° Laser Range Scanner (12m, IP54)

Skip to the beginning of the images gallery

RPLiDAR C1 - DTOF LiDAR 360° Laser Range Scanner (12m, IP54)

SKU: DFR1138 Brand: DFRobot

RPLIDAR C1 is SLAMTEC's advanced DTOF Laser Scanner with high-definition and anti-interference. Supports ROS and ROS2. Ideal for robot positioning,...

$144.95 AUD, inc GST

$131.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

5+ $126.50 (exc GST)
10+ $122.55 (exc GST)

The RPLIDAR C1 is a new generation fusion-type DTOF (Direct Time of Flight) laser scanner from SLAMTEC. This advanced LIDAR system excels in high-definition detection of small and nearby objects, offering superior anti-interference and anti-adhesion capabilities. With a measurement radius of 12 meters, a sampling frequency of 5000 times per second, and 360-degree full-range laser scanning, the compact and agile design of the RPLIDAR C1 is ideally suited for applications such as robot positioning, mapping, navigation, and obstacle avoidance in a variety of environments.

Features of RPLIDAR C1 DTOF laser scanner

HD High Definition and Cost-Effective

RPLIDAR C1 integrates the technical advantages accumulated by SLAMTEC in triangulation and DTOF ranging for many years,enabling C1 to meet the requirements of robot positioning, mapping, and navigation in terms of ranging accuracy,distance measurement, anti-interference, and anti-adhesion performance.

RPLIDAR C1 HD High Definition and Cost-Effective

Enhanced Perception but Not Limited to Flat Surfaces

With SLAMTEC's self-developed SL-DTOF ranging technology, RPLIDAR C1 not only provides position information data but also offers reflectivity data and 2.5D multidimensional information, providing you with more reference points.

RPLIDAR C1 Enhanced Perception but Not Limited to Flat Surfaces

12m Radius Range and Easy to Handle Various Object Ranging Challenges

RPLIDAR C1 has a measuring distance of up to a radius of 12 meters and a low blind range of only 0.05 meters. It easily accomplishes scanning and measuring objects at various distances and achieves obstacle avoidance.

RPLIDAR C1 12m Radius Range and Easy to Handle Various Object Ranging Challenges

Compact in Size and Easy to Integrate

RPLIDAR C1 not only delivers powerful performance but also features a compact and agile design. It is small and has low levels of noise and vibration, making it easy to integrate into various applications. Its compact size and versatility open up a wide range of possibilities and uses.

RPLIDAR C1 Compact in Size and Easy to Integrate

High Reliability and Compatibility with the SLAMTEC ecosystem

RPLIDAR C1 exhibits high compatibility with SLAMTEC's software and hardware interfaces, allowing seamless integration into the SLAMTEC ecosystem. It also offers a smooth transition when switching from existing SLAMTEC products.

RPLIDAR C1 High Reliability and Compatibility with the SLAMTEC ecosystem

Comprehensive SDK tutorial and Support ROS

SLAMTEC provides SDK development packages that can run on different platforms such as x86 Windows, x86 Linux, and arm Linux. It supports ROS and ROS2 operating systems, assisting customers in development and integration across various operating systems and architectures.

RPLIDAR C1 Comprehensive SDK tutorial and Support ROS

Class 1 Laser Safety Standard

RPLIDAR C1 adopts low-power infrared laser light as its light source and drives it by modulated pulse. It reaches Class 1 Laser Safety Standard which is safe to human eyes.

RPLIDAR C1 Class 1 Laser Safety Standard

Features

Smaller size, better performance

5KHz sampling speed

12m measuring radius

IEC-60825 Class 1 laser safety standard

SDK development package supporting x86 Windows, x86 Linux, arm Linux, and other platforms.

Applications

Home Robots

Hobbyist/Educational Application

Commercial Robot

Autonomous Vehicles in Low-Speed Parks

Parking Lot Space Monitoring

Obstacle detection and avoidance

Specification

Distance Range: White object: 0.05-12 meters (under 70% reflection), Black object: 0.05-6 meters (under 10% reflection)

Sample Rate: 5KHz

Scanning Frequency: 8~12Hz, 10Hz@typical

Angular Resolution: 0.72°@typical

Scan Field Flatness: 0°~1.5°

Communication Interface: TTL UART

Communication Speed: 460800

Accuracy: ±30mm

Resolution: 15mm

Degree of Protection: IP54

Ambient Light Limit: 40000lux

Weight: 110g

Working Temperature Range: -10~40°C

Storage Temperature Range: -20~60°C

Documents

Documents

SDK and Firmware

Application Note

ROS Package, RPLIDAR SDK is required to use this package

ROS

ROS2

3D Models

RPLIDAR C1 Dev Kit 3D STP

Parts List

RPLIDAR C1 x1

USB Adapter x1

Micro-USB Cable x1
