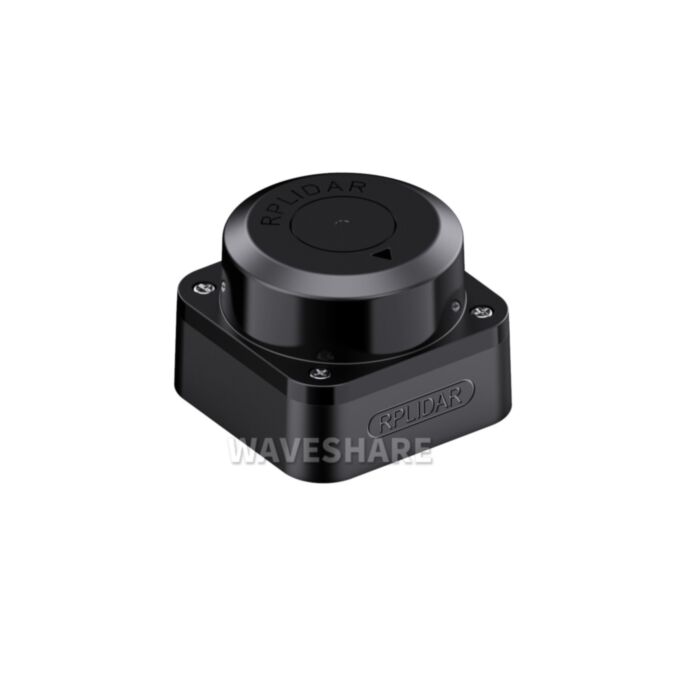

Slamtec RPLIDAR C1 Laser Ranging Sensor

SKU: WS-26535 Brand: Waveshare
Slamtec RPLIDAR C1 Laser Ranging Sensor, 360° Omnidirectional Lidar, Millimeter-Level High Definition, Anti-Interference And Anti-Adhesion, Compact And...
$139.95 AUD, inc GST
$127.23 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 07 and Jun 10

Quantity Discounts:

  • 5-10 $123.41 (exc GST)
  • 10+ $120.86 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Slamtec RPLIDAR C1 Laser Ranging Sensor, 360° Omnidirectional Lidar, Millimeter-Level High Definition, Anti-Interference And Anti-Adhesion, Compact And Easy To Integrate

Specifications

Ranging Distance 0.05~12.00m (white object, 70% reflectivity)0.05~6.00m (black object, 10% reflectivity)
Ranging Accuracy ±30mm
Scanning Frequency 8~12Hz (Typ 10Hz)
Scanning Angle 360°
Ranging Frequency 5000Hz
Ranging resolution 15mm
Angular resolution 0.72°
wavelength 905nm
Communication Interface UART, TTL
Power Supply 5V
Power Consumption 1.15W
Operating Current 230mA
Weight 110g
Operating Temperature -10 ~ 40°C
Dimensions(L × W × H) 55.6×55.6×41.3mm



Dimensions



Resources

Wiki for Slamtec C1 Lidar
