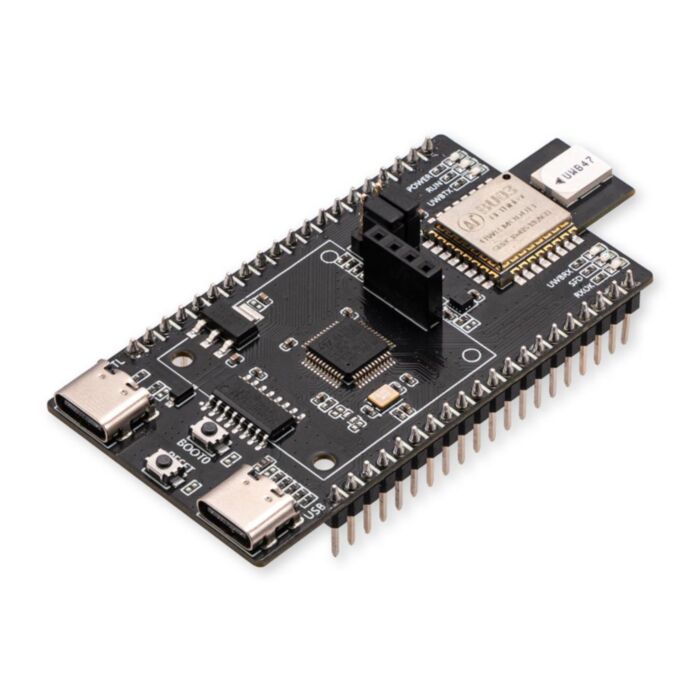

Ultra-Wide-Band Positioning Development Kit (UWB, BU-03)

SKU: CE10222 Brand: Core Electronics Guides (1)

Have you ever wanted the position between 2 objects? These modules output exactly that!

$36.65 AUD, inc GST

$33.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

5+ $32.65 (exc GST)
12+ $31.65 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

Positioning requires at least 2 modules to work - we recommend 4 for full 3D positioning!

The BU-03 Kit from AI Thinker brings localised positioning technology within reach for makers and hobbyists. Originally only accessible for industrial projects, this module provides precise distance measurements with an easy-to-use serial AT command interface, making it ideal for projects requiring accurate proximity or positioning, like robotics.

These measure distance between boards, so with enough of them and some math (that is handled on the devices), you can infer an XYZ position.

This compact module operates similarly to a GPS device but with a much shorter range (up to 25 metres line-of-sight). By deploying multiple base stations, two for point-to-point distance measurement, three for 2D positioning, or four for 3D positioning - along with the 'tag' that you are tracking (All are this same unit), you can achieve increasingly precise spatial awareness for your projects.

We have a great getting-started guide on it as well!

Specifications

Power Supply: 5V (peak current 500mA)
Logic Level: 3.3V
Operating Range: Up to 25 metres (line of sight)
Positioning Accuracy: Typically 10 centimetres
Onboard hardware: DW3220 and STM32F103
Interface: Serial output using AT commands

Like GPS - it is desirable to have more than the minimum amount of reference stations (3 for 3D tracking, one tag = 4 total), more stations increases the accuracy of the position measurement.

Compatibility

Microcontrollers and development boards with 3.3V logic level UART support
Serial communication interfaces supporting AT commands
Suitable for projects needing accurate proximity detection or indoor positioning
Can be integrated with custom STM32 or Arduino setups with appropriate level shifting
Works well in maker and prototyping environments, once exclusive to industrial applications
