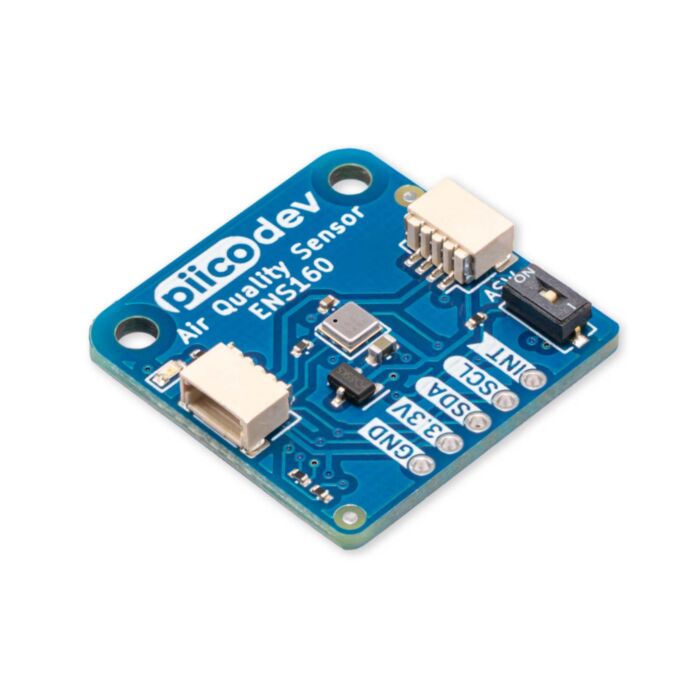

PiicoDev Air Quality Sensor ENS160

Rating:
100% of 100
SKU: CE08560 Brand: PiicoDev Guides (2)
CE Original

Measure indoor air-quality - sensitive to fumes, cooking smells, humans.

$40.20 AUD, inc GST
$36.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 4-12 $34.72 (exc GST)
  • 12+ $32.89 (exc GST)
  • 50+ $31.06 (exc GST)
- +

68 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Measure indoor air quality with the PiicoDev® Air Quality Sensor - a multi-gas sensor that uses intelligent on-chip algorithms to directly output rich, easy-to-understand environmental data like internationally recognised Air Quality Index (AQI-UBI).  The onboard ENS160 measures Volatile Organic Compounds (VOCs), Equivalent CO2 (eCO2) which are commonly used in the HVAC industry to control ventilation. Use PiicoDev adapters and cables for solder-free connections and follow the getting-started guide to begin programming this sensor in MicroPython with your favourite development platform.

The sensor generally requires a 3-minute warm-up before use (longer if it's the first-ever power-up) to obtain accurate data. Long-term stability is ensured by the built-in automatic baseline correction algorithm.

Features

  • Intuitive output: Air Quality Index
  • Measures VOCs and eCO2
  • A great guide to get you started
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics

Getting Started Guides

We've prepared a getting-started guide that works with Raspberry Pi, Pico, and Micro:bit.

Technical Specifications

  • I2C Address: 0x53 (default) or 0x52 (ASW:OFF, ON)
  • Output parameter:
    • TVOC: 0-65,000 ppb
    • eCO2: 400-65,000 ppm
    • AQI-UBA: 1 to 5
  • Supply Voltage: 1.7 to 3.6 V
  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 2x M2.5

Resources



Also available are PiicoDev Starter Kits - level up your projects by learning to use a wide range of modern sensors and outputs.

 PiicoDev Air Quality Sensor ENS160


PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
