PiicoDev Precision Temperature Sensor TMP117

Rating:
100% of 100
SKU: CE07502 Brand: PiicoDev Guides (4)
CE Original
Accurate to ±0.1°C (across -20°C to +50°C) with no calibration required.
$11.70 AUD, inc GST
$10.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 14th of Oct

Quantity Discounts:

  • 4-12 $10.11 (exc GST)
  • 12+ $9.57 (exc GST)
  • 50+ $9.05 (exc GST)
- +

528 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

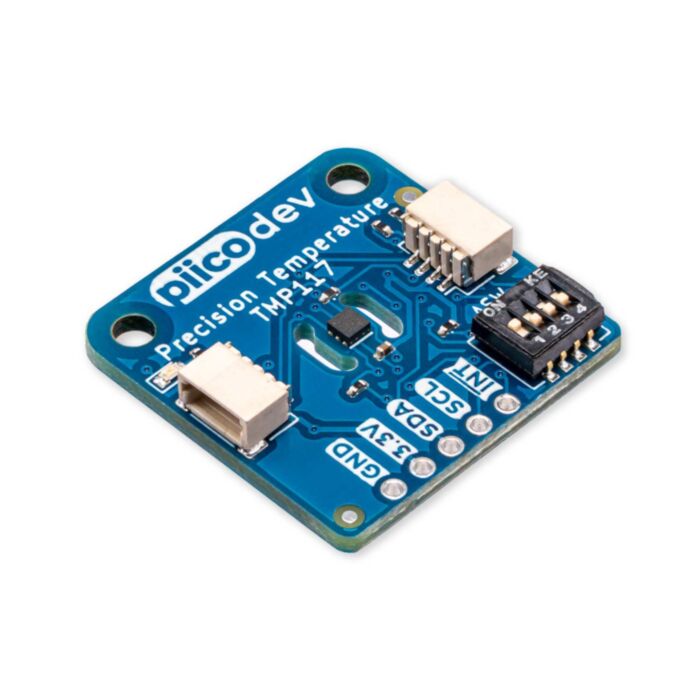

The PiicoDev Precision Temperature Sensor features a low-power, high precision TMP117 with 16-bit resolution and an accuracy of ±0.1°C (across -20°C to 50°C) with no calibration required. The full operating range is -55°C to 150°C.

Up to four temperature sensors can be connected on the same bus, they just require a unique address - settable by the ASW switch. Set one switch at a time to select the following addresses - 1:0x48, 2:0x49, 3:0x4A, 4:0x4B

  • Small size, high accuracy
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics

Getting Started Guides

Technical Specifications

  • 4 configurable I2C addresses set by the ASW switch (0x48 to 0x4B). Default: 0x48
  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 2x M2.5
  • TMP117:
    • ±0.1°C from -20°C to 50°C
    • ±0.15°C from -40°C to 70°C
    • ±0.2°C from -40°C to 100°C
    • ±0.25°C from -55°C to 125°C
    • ±0.3°C from -55°C to 150°C
    • 0.0078°C resolution (1 LSB)

Resources:

Also available are PiicoDev Starter Kits - level up your projects by learning how to use a wide range of modern sensors and outputs.

PiicoDev Precision Temperature Sensor TMP117


PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
