Nano V3.0 Board

SKU: CE05101

$15.17 AUD, inc GST
$13.79 AUD, exc GST
Nano V3.0 Board
15.17 AUD

SKU: CE05101

$15.17 AUD, inc GST
$13.79 AUD, exc GST
13 reviews 0 5 4.9
Shipping Offer


  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

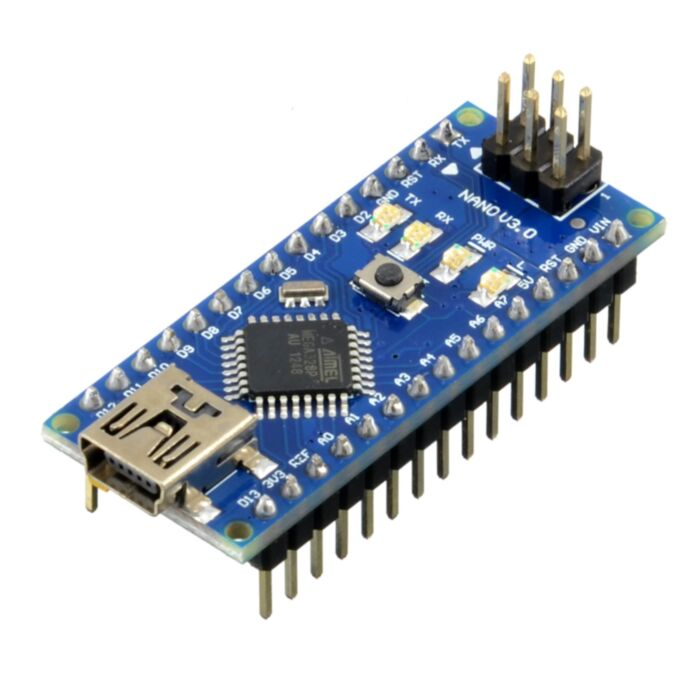

This is a small, complete, and breadboard-friendly microcontroller board based on the ATmega328. It has the same functionality of the Arduino® Uno, but in a smaller physical package. The main difference is the lack of a DC Barrel Jack, and the substitution of the square Type-b USB connector for a Mini-B USB connector.

This board is a generic variant, built from the open source design. It is a compatible replacement for the official Arduino® Nano v3.0, however, we recommend and guarantee that only the official variant will work with all Arduino® educational resources wherever it is referenced. Buying official also supports the creators and their future innovations.


  • Microcontroller: Atmel ATmega328
  • Operating Voltage (logic level): 5 V
  • Input Voltage (recommended): 7-12 V
  • Input Voltage (limits): 6-20 V
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • Analog Input Pins: 8
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32 KB (ATmega328) of which 2 KB used by bootloader
  • SRAM: 2 KB (ATmega328)
  • EEPROM: 1 KB (ATmega328)
  • Clock Speed: 16 MHz
  • Dimensions: 0.73" x 1.70"

Arduino® is a trademark of Arduino AG.

This product is listed in:

Documentation and Resources:
Educational Workshops
  • Arduino Workshop for Beginners
  • Welcome to the Arduino Workshop, where you'll be able to follow our guided course which covers everything you'll need to know in order to create your own Arduino projects and become a leveled up maker. My name is Sam and along with being a maker my...
  • C Programming for Makers
  • Welcome to the C Programming Workshop for Makers! Here you'll be able to follow along with our series of easily digestible videos that cover everything you'll need to know to on your way with C programming and start making awesome projects. As you pr...
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • How to Use a Logic Level Shifter/Converter
  • So you’ve got your microcontroller/development board ready to go, you’ve got your sensors and external components and you’re ready to build an IoT device to make the world your slave. But hang on a minute, the sensor you have only o...
  • Arduino with LattePanda
  • Ah, Arduino and LattePanda coming together at last. What could be better? Well along with the fact that your LattePanda is a fully fledged Windows 10 computer so you can program any Arduino board you want as normal, one of the best things about Latte...
  • Infrared Sensing, Hardware Interrupts, and the Arduino
  • Infrared (IR) is a great way of using non-visible light to control electronics, and there are a bunch of modules that we can use with our Arduino. However, what do we mean when we are talking about infrared and electronics? Well, IR remotes that cont...
  • GraviTrack Enhancements - Lights and Sound
  • Introduction Searching for solar panels and related items on the Core Electronics website; I came across the Solarbotics GraviTrack Marble Machine Kit. I thought the kit would be a good educational tool for the grandkids. The kit was a hit, but the power switch was hard to access at the back of the machine and it only turned on and off. I had been experimenting with programmable RGB LEDs, Piezo speakers and a Light dependent re...
  • My ghostbusters proton pack
  • Hi all. Thought I'd share with you my modded Spirit Halloween proton pack. It's about 80% scale, which is plenty big enough for my 7-year-old son, and still looks decently sized on adults. As soon as I learned of this pack, 5-year-old me just had to get one. And I had just gotten my Arduino beginners kit a week earlier. I knew what had to be done :)...
  • Handheld UV Meter
  • UV is important to reptiles (and people) in processing vitamin D3 which is needed to absorb calcium. Without it reptiles often suffer from Metabolic Bone Disease (MBD) which leads to weak bones and can be fatal. Thankfully, pet shops have the answer, UV producing globes which can stave off the dreaded MBD. These are in the form of T8 florescent tubes or compact florescent globes and go for $50+ each. And, yeah, they need to be re...
  • Tabot
  • Tabot is a robotic tablet dispenser. It is designed to help elderly people maintain their independence and help anyone who has tablets remember to take them on time.
  • Cosplay Blaster
  • Hey guys! First time poster. I've been working on a blaster for my girlfriend's costume, and I thought I would share it with everyone. When triggered, it plays a selected sound effect and flashes the light. Pretty simple :)

Product Comments

Customer Reviews

  1. Review by Peter verified purchaser

    ok (Posted on 29/11/2018)

  2. Review by Michael verified purchaser

    Build quality is OK... (Posted on 19/10/2018)

  3. Review by Ashwin verified purchaser

    Good quality board in a nice small form factor. (Posted on 2/10/2018)

  4. Review by Jake verified purchaser

    Arrived packed very well, it had foam along the bottom pins to prevent damage or bending during transit which I thought was a nice touch. (Posted on 29/09/2018)

  5. Review by Ron verified purchaser

    yet to try (Posted on 19/03/2018)

  6. Review by Peter verified purchaser

    I used this Nano as a direct replacement for a Uno. I uploaded the same code (for an IR Temp Sensor) using the IDE/USB connection without problem. Hence for my purposes thus far, the process was seamless. (Posted on 9/10/2017)

  7. Review by DAVID verified purchaser

    Very satisfied. Tech info adequate. (Posted on 10/05/2017)

  8. Review by Chris verified purchaser

    A good little unit for dedicated projects, but if you want a platform to experiment with. I think the Uno is just a little easier (i.e. you can use jumpers). The Nano's fine, but you will need a breadboard. (Posted on 14/03/2017)

  9. Review by Benjamin verified purchaser

    Excellent service, Core Electronics pre-empted potential difficulties by providing an email explaining some requirements for connecting this device. (Posted on 10/10/2016)

  10. Review by Michael - Great for breadboarding verified purchaser

    The Nano fits into a breadboard perfectly, allowing for quick prototyping of new projects. The USB connection can be flaky when the Nano is in the breadboard, but this can be solved by disconnecting other components from the Nano's power pins. (Posted on 9/02/2014)

  11. Review by Dylan - Excellent little board

    Used this board to run a small outdoors sprinkler system. Works great has been running for almost two months, no problems, without a reset. (Posted on 18/01/2014)

  12. Review by AK - Fully interchangeable with an Uno verified purchaser

    The Nano is fully compatible and interchangable with the Uno. Just had to rewire it after initial testing with an Uno. Code does not need to be changed nor did the pinouts. (Posted on 20/12/2013)

  13. Review by Garry - Small Board Good for simple projects

    Great little board for those time where a full size board is an overkill
    Simple to use and cheap (Posted on 15/11/2013)
