JST connector Kit (2.54mm)

Rating:

99% of 100

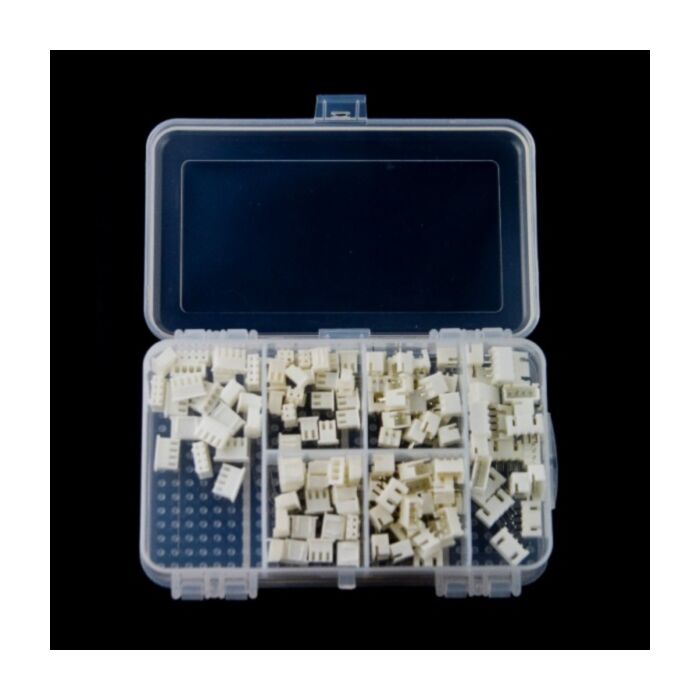

This kit includes JST XHP-2, XHP-3 and XHP-4 housing (20 units each), through-hole type shrouded header (20 units each) and crimp contact (100 units).

$14.90 AUD, inc GST

$13.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $13.00 (exc GST)
25+ $12.60 (exc GST)

The manufacturer has provided specifications for these connectors with a pin pitch of 2.54mm. Official JST XH series connectors use a 2.5mm pitch however for 4 or fewer pins either pitch will work interchangeably.

This kit includes JST XHP-2, XHP-3 and XHP-4 housing (20 units each), through-hole type shrouded header (20 units each) and crimp contact (100 units).

Specification

Current rating:3A AC,DC (AWG #22)
Voltage rating:250V AC,DC
Temperature range:-25°C to +85°C(including temperature rise in applying electrical current)
Contact resistance:Initial value/10m Ω max.
After environmental testing/20m Ω max.
Insulation resistance:1000M Ω min.
Withstanding voltage:1000V AC/minute
Applicable wire:AWG#30~#22
Applicable PC board thickness:1.6mm

Parts List

JST 2.54mm XHP-2 housing*20
JST 2.54mm XHP-3 housing*20
JST 2.54mm XHP-4 housing*20
JST 2.54mm B2B-XH-Athrough-hole type shrouded header *20
JST 2.54mm B3B-XH-Athrough-hole type shrouded header *20
JST 2.54mm B4B-XH-Athrough-hole type shrouded header *20
crimp contact*100
Two-sided Compartment Parts Box *1
