Zero4U - 4 Port USB Hub for Raspberry Pi Zero v1.3

SKU: ADA3298

$21.50 AUD, inc GST
$19.55 AUD, exc GST

More Views

Zero4U - 4 Port USB Hub for Raspberry Pi Zero v1.3
21.5 AUD

SKU: ADA3298

$21.50 AUD, inc GST
$19.55 AUD, exc GST
2 reviews 0 5 5

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

One can never have enough socks, or USB ports. Add some more USB capability to your Raspberry Pi Zero with the Zero4U!

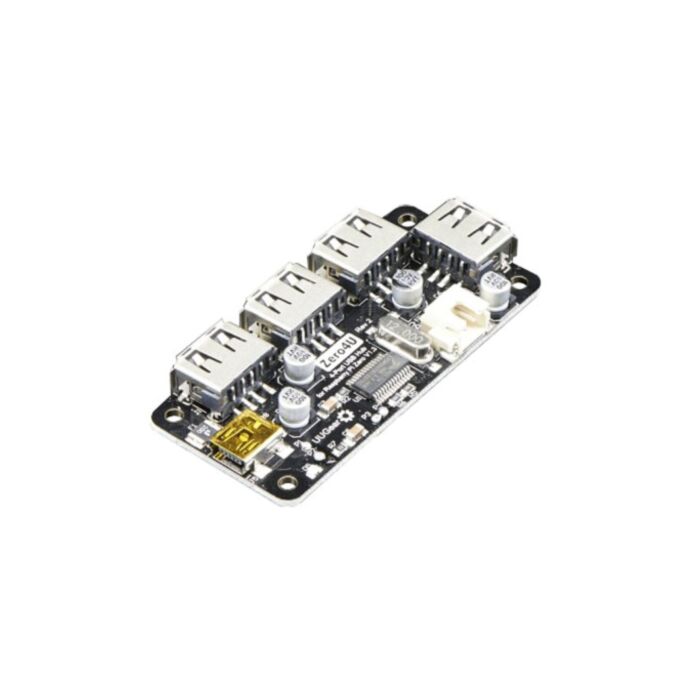

This is a 4-port USB hub for Raspberry Pi Zero, and it can be mounted back-to-back onto a Pi Zero. The 4 pogo pins on the back will connect the PP1, PP6, PP22 and PP23 testing pads on your Raspberry Pi Zero – no soldering required!

This item can only work with the Zero W if a ferrite ring is installed!

The USB hub will take power directly from your Pi Zero, so you don’t need to power the USB hub separately. However you can use the JST XH2.54 connector on board as an alternative power input port. The blue onboard LED is the power indicator, and will light up when power is connected. Each USB port uses a dedicated white LED as a transaction indicator, and a dedicated electrolytic capacitor to help stabilize the output voltage.

If you use this USB hub with other types of computers, you can use a USB cable (not included) to connect the onboard mini-USB port to the up-stream USB port.

Kit includes:

  • 4-port USB hub board x 1
  • Plastic spacer x 4
  • M2.5 plastic screw x 4
  • M2.5 plastic nut x 4

Note: This version of Zero4U only works with the Raspberry Pi Zero v1.3 (with camera connector).

Note: As of 3/29/2017, this ships with a small Ferrite ring in each Zero4U package, in order to support the newly released Raspberry Pi Zero W. The user can put that Ferrite ring on the pogo pins to avoid the interference from the on-board antenna.

Technical Details

  • Power Mode: Bus-Power / Self-Power
  • Standards: USB 2.0 and 1.1 compatibility
  • Working Voltage: 5V DC
  • Static Current: 1mA
  • Maximum Output Current: 2A for all ports in self-power mode, 500mA for all ports in bus-power mode
  • Operating Temperature: 0°C~70°C
  • Storage Temperature: -20°C~80°C
  • Humidity: 0~80%RH, non-condensing

User Manual

Product Dimensions: 65.0mm x 30.0mm x 15.0mm / 2.6" x 1.2" x 0.6"

Product Weight: 14.1g / 0.5oz

This product is listed in:

Documentation and Resources:
Educational Workshops
  • Arduino Workshop for Beginners
  • Welcome to the Arduino Workshop, where you'll be able to follow our guided course which covers everything you'll need to know in order to create your own Arduino projects and become a leveled up maker. My name is Sam and along with being a maker my...
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • How to Use a Logic Level Shifter/Converter
  • So you’ve got your microcontroller/development board ready to go, you’ve got your sensors and external components and you’re ready to build an IoT device to make the world your slave. But hang on a minute, the sensor you have only o...
  • Arduino with LattePanda
  • Ah, Arduino and LattePanda coming together at last. What could be better? Well along with the fact that your LattePanda is a fully fledged Windows 10 computer so you can program any Arduino board you want as normal, one of the best things about Latte...
  • Potentiometers and the Arduino Uno
  • Variable resistors come in all shapes and sizes, and they all do the same basic job. They allow you precisely control voltage/current flow within a circuit. The most common type of variable resistor we see in DIY electronics is the Potentiometer, or ...
  • Relay Operation and the Arduino Uno
  • If you could operate your switch without physically toggling it on and off, you would open yourself up to an entire section of electronics. Relays are one of the best ways of doing this. A relay is essentially just a switch, controlled by an electrom...
  • Tabot
  • Tabot is a robotic tablet dispenser. It is designed to help elderly people maintain their independence and help anyone who has tablets remember to take them on time.
  • Cosplay Blaster
  • Hey guys! First time poster. I've been working on a blaster for my girlfriend's costume, and I thought I would share it with everyone. When triggered, it plays a selected sound effect and flashes the light. Pretty simple :)
  • Coffee Grinder With Arduino
  • Using a few bits and pieces, this ordinary coffee grinder now has two presets to run the motor for a programmable length of time. The idea being that the grinder running for a set amount of time will deliver a certain amount of coffee each button press meaning the beans can be stored unground, keeping them fresher for longer. I completed this project for a friend, Ian, who lives for coffee. Ian wanted the same functionality in h...
  • The Hipster Coaster
  • We wanted to make a interactive display of the fun that can be had with DIY projects to take to Sydney Mini Maker Faire. We decided to do so by utilising the TinkerKit Braccio from Arduino.org, alongside some 3D Printing ingenuity, for an engaging display for all ages. Enter the Hipster Coaster in all its glory.   All the parts were printed seperately on our family of Lulzbot 3D Printers, later stuck together using a mi...

Product Comments


Customer Reviews

  1. Review by andrew verified purchaser
    Rating
    100

    Good price, fast delivery (Posted on 7/09/2017)

  2. Review by Dale verified purchaser
    Rating
    100

    Works very well, just be aware the Pi zero on board USB connection is disabled when this board is connected. (Posted on 29/08/2017)
