SparkFun Buck Regulator Breakout - 5V (AP63357)
Available with a lead time
Expect dispatch between Feb 10 and Feb 13
Quantity Discounts:
- 10-25 $10.15 (exc GST)
- 25+ $9.93 (exc GST)

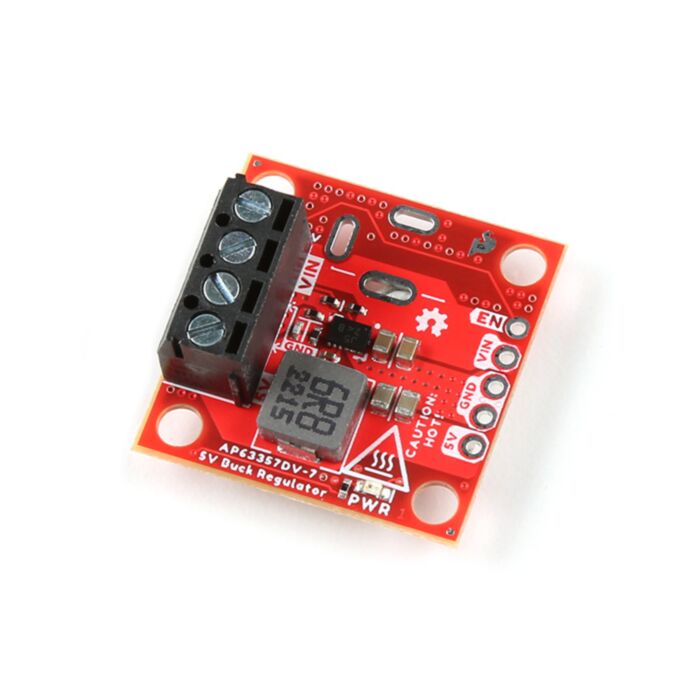

The SparkFun 5V Buck Regulator Breakout features the AP63357 from Diodes Inc., a 3.5A synchronous buck converter with a wide input voltage range of 3.8V to 32V. The fully integrated 74mO high-side power MOSFET/40mO low-side power MOSFET provides a high-efficiency step-down DC/DC conversion.
This full-size, 1in. x 1in. version of our buck regulator boards is configured to provide a regulated 5V output and features a high-voltage EN (enable) control pin that is rated up to 32V. On the back of the board, a small copper pad is available to dissipate excess heat with a heat sink.
As a full-size buck regulator breakout, additional options for connecting input and output power. There is a pre-assembled screw terminal for a non-permanent connection, the option to solder on a barrel jack for an external power supply, and five PTH pins to create a more permanent installation. Our full-size buck regulators also come with a red, power indication LED that light up when the power output is enabled and two mounting holes compatible with 4-40 hardware.
Check out our BabyBuck regulators and the SparkFun BabyBuck Regulator Breakout - 5V (AP63357), for the smaller minimalistic versions of our buck regulators.
Note: While the AP63357 is rated up to a 3.5A output, users should expect a 3A maximum with our boards due to thermal constraints. The boards can output 3.5A but would require a sufficient amount of active cooling.
Get Started with the SparkFun AP63357 Buck Regulator Breakout Hookup GuideFeatures
Buck Board Features:
- 1in. x 1in. PCB layout
- Three power input/output options:
- Pre-assembled 4-pin screw terminal
- Five 0.1in. spaced PTH pins
- Three plated slots for a DC barrel jack (input only)
- Power connections:
VIN- Power In (6V to 32V)GND- Common GroundVOUT- Power Out (Regulated 5V)EN- Enable (Pull high to enable the power output)
- Red, power LED indicator
- 0.5in. x 0.6in. Plated copper pad (for heat sinks)
AP63357 Features:
- VIN 3.8V to 32V
- 3.5A Continuous Output Current
- 0.8V ± 1% Reference Voltage
- 22µA Low Quiescent Current (Pulse Frequency Modulation)
- 450kHz Switching Frequency
- Supports Pulse Frequency Modulation (PFM)
- Up to 86% Efficiency at 5mA Light Load
- Proprietary Gate Driver Design for Best EMI Reduction
- Frequency Spread Spectrum (FSS) to Reduce EMI
- Low-Dropout (LDO) Mode
- Power Good Indicator with 5M? Internal Pull-up
- Precision Enable Threshold to Adjust UVLO
- Protection Circuitry
- Undervoltage Lockout (UVLO)
- Output Undervoltage Protection (UVP)
- Cycle-by-Cycle Peak Current Limit
- Thermal Shutdown
