Peltier Thermo-Electric Cooler Module+Heatsink Assembly - 12V 5A

SKU: ADA1335

$66.40 AUD, inc GST
$60.36 AUD, exc GST

More Views

Peltier Thermo-Electric Cooler Module+Heatsink Assembly - 12V 5A
66.4 AUD

SKU: ADA1335

$66.40 AUD, inc GST
$60.36 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

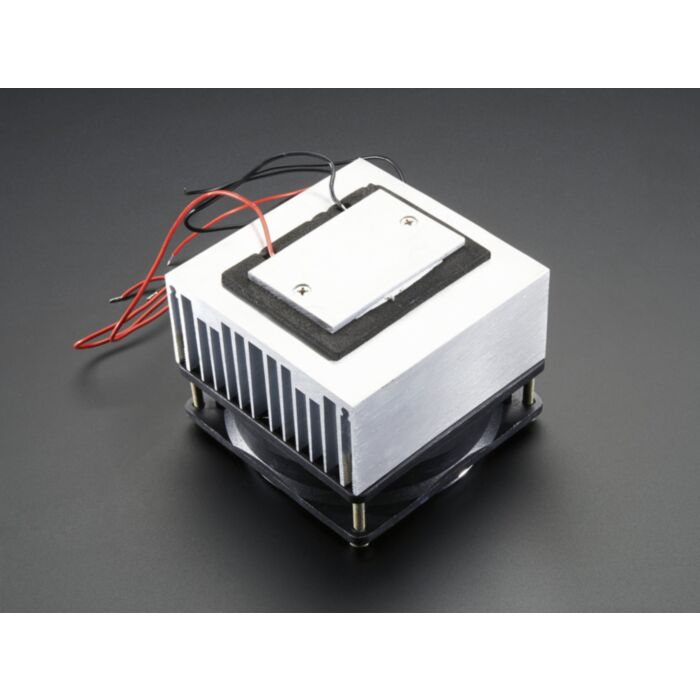

This is for people who just want to get cold fast. The 12V Peltier module is mounted onto a 12V heatsink and fan assembly with thermal paste and an aluminum clamp. Simply connect to 12V 5A+ power supply and you will see frost appear on the aluminum plate within a minute. This assembly comes with the best Peltier Adafruit could get, so it can get even colder than the stand-alone module Adafruit stock, but we think the price is worth it. Just sitting on Adafruit's desk it got down to -3.6°C, nice and frosty!

Comes with the Peltier, heatsink, fan all assembled. You'll need a power supply to power it, we suggest Adafruit's 12V 5A wall adapter. Adafruit show a temperature meter in a photo but that's not included, its just to show you how cold it gets.

Peltier Thermo-Electric Cooler Module+Heatsink Assembly - 12V 5A (7:28)

Technical Details

  • The Peltier Module is 40mm x 40mm / 1.6" x 1.6"
  • The aluminum plate is 40mm x 60mm / 1.6" x 2.4"
  • The heat-sink is 90mm x 90mm / 3.5" x 3.5"
  • The whole assembly is approximately 78mm / 3.1" tall
  • Wire Length: 280mm / 11"
  • Weight: 455g
  • Wattage: 60W nominal (12V * 5A), 72W max
