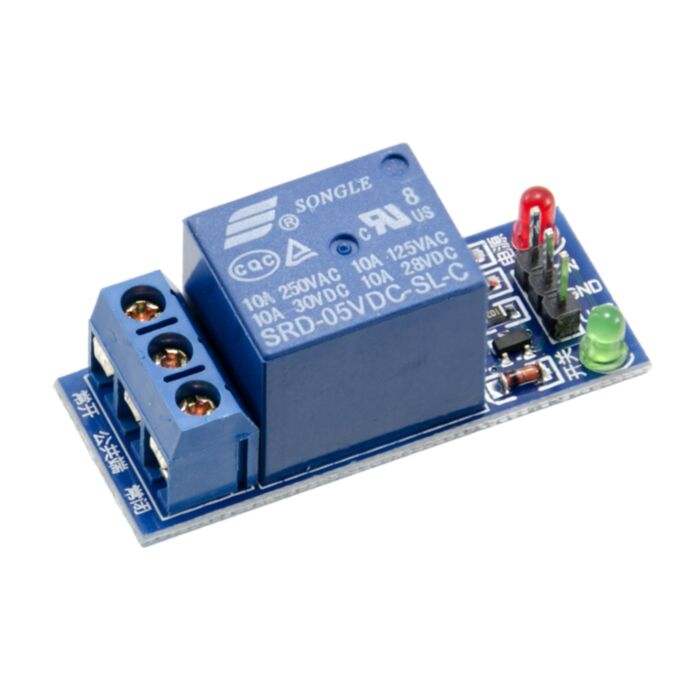

5V Single Channel Relay Module 10A
A versatile, compact relay board that can drive up to 10A @28VDC while only drawing approximately 60mA at 5V.
In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec
Quantity Discounts:
- 5-15 $4.41 (exc GST)
- 15+ $4.27 (exc GST)
A versatile little relay board. This relay channel can drive up to 10A @28VDC
- While marked as a 5V supply voltage & input signals, we've found these relays to consistently work at 3.3V. If your unit isn't triggering, have a look at the notes to the right.
- Equipped with a high-current 10Amp relay
- 2x LEDs that show the current state of the relay
- Some markings are in Chinese; the key input connectors are in English
Need an opto-isolated relay? Check out our 2 channel or 4 channel versions.
Documents and Resources
Specifications
- 10 A Relay
- Active Low (Pull to GND)
The relay is active when the control signal is pulled low. If control is left to float or at Vcc voltage, the relay is inactive.
Notes: It should be noted that the supply pin (Vcc) voltage needs to be the same as the logic level voltage (IN) pin for this relay to work. For example, you would need to use the 3.3V rail on a Raspberry Pi as its GPIO pins operate at 3.3V.
Examples
Raspberry Pi Pico - Micropython
from machine import Pin
import time
# Define the trigger and echo pins
relay = Pin(1, Pin.OUT)
# Turn the relay on and off forever
while True:
relay.toggle()
