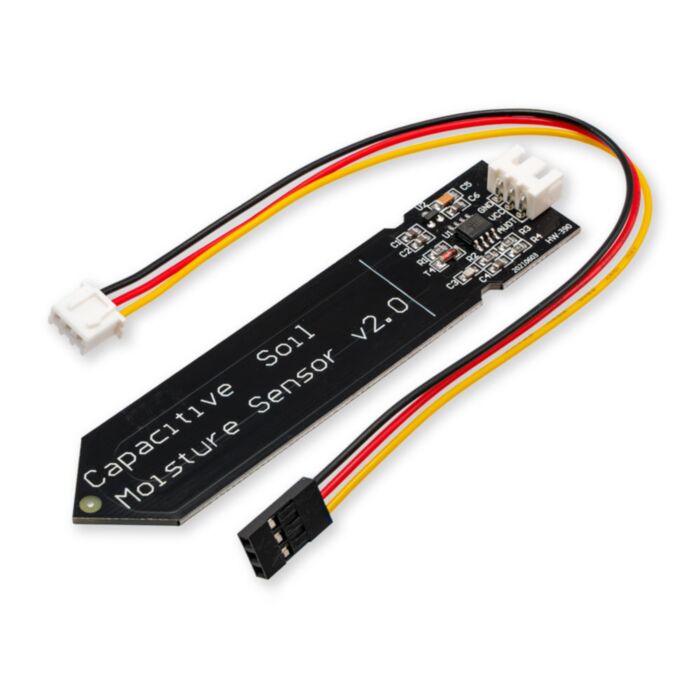

Capacitive Soil Moisture Sensor (v2.0)

Rating:
100% of 100
SKU: CE09640 Brand: Core Electronics

Check-in with your plant friends, this sensor is great for detecting soil moisture levels!

$2.95 AUD, inc GST
$2.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 5-15 $2.63 (exc GST)
  • 15+ $2.55 (exc GST)
- +

201 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

If you are after a full plant automation kit - check out Plant_io

Tired of wilted plants? Automate your troubles away with this soil moisture sensor!

This sensor reduces corrosion by sensing water capacitively instead of resistively, so water never comes into direct contact with the metal portion of the sensor.

You'll need an analog-to-digital converter to get this sensor working with a Raspberry Pi.

To calibrate the sensor, record the reading when completely dry, and immerse the sensor in water, recording the result (making sure not to get the capacitors and resistors wet).

Map between the two values and experiment with thresholds for each plant!

Specifications

  • Operating voltage: 3.3V - 5.0V
  • Current Consumption: 5.68mA
  • Analog output that varies between 0V and your supply voltage (so if your ADC can only handle 3.3V, supply this module with 3.3V)

Shipping List

  • Soil moisture sensor
  • Dupont adapter cable

Examples

Raspberry Pi Pico - Micropython

import machine
from time import sleep

soil_moisture = machine.ADC(28)

# A handy function for mapping values
def map_range(x, in_min, in_max, out_min, out_max):
    mapped = (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min
    return int(max(min(mapped, out_max), out_min))

while True:
    soil_moisture_raw_reading = soil_moisture.read_u16()
#     print(soil_moisture_raw_reading)

    soil_moisture_filtered_reading = map_range(soil_moisture_raw_reading, 15000, 50000, 0, 100)
    print(soil_moisture_filtered_reading)
    sleep(0.5)
