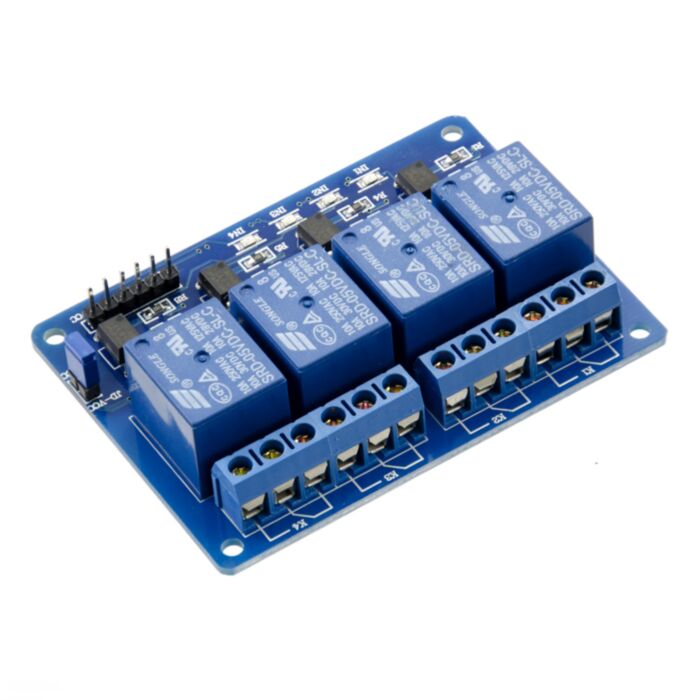

5V 4 Channel Relay Module 10A

Rating:
98% of 100
SKU: CE05279 Brand: Core Electronics Guides (1)

A versatile relay board with opto-isolated inputs. Each channel can switch up to 10A @28VDC

$3.55 AUD, inc GST
$3.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 5-15 $3.16 (exc GST)
  • 15+ $3.06 (exc GST)
- +

82 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

A versatile relay board with opto-isolated inputs. Each channel can switch up to 10A@28VDC

Features

  • While marked as requiring 5V supply and logic, we've found this board to work fine at 3.3V
  • Features a jumper to disconnect the VCC line from the transistors driving the relays, effectively giving you a way to "dry-run" this module
  • Features opto-isolators and transistors to drive the relay coils, meaning that you only need 2mA per pin on your microcontroller to drive it

Specifications

  • Dimensions: 76mm x 55mm x 19mm
  • Optoisolator/LED Current Draw: 2mA per relay
  • Relay Coil Current Draw: 60mA per relay
