LPM-10A Multifunctional Network Cable Tracker

SKU: CE10607 Brand: FNIRSI

Diagnose network infrastructure and isolate cable faults instantly, even in high-noise environments. This combines advanced anti-interference line tracking, PoE detection, and precise length measurement into one compact diagnostic tool.

$82.95 AUD, inc GST

$75.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

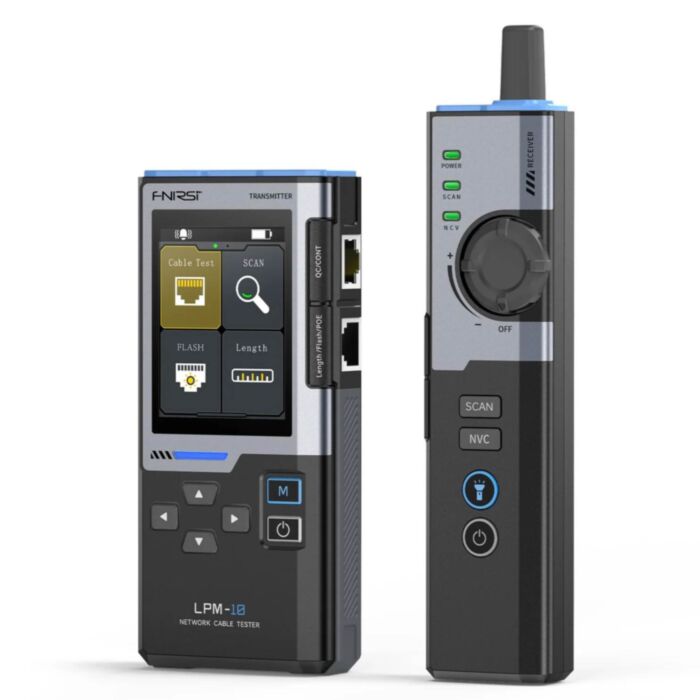

The FNIRSI LPM-10A is a comprehensive, multi-function network cable tester and line finder designed to streamline network diagnostics and maintenance. It combines cable tracing, length measurement, wiremap testing, and Power over Ethernet (PoE) detection into a single, compact handheld unit.

Tracking down a specific cable in a dense server rack or a tangled wall cavity can be a nightmare of false positives and endless frustration. The LPM-10A solves this with advanced anti-interference technology, allowing makers and network technicians to accurately trace cables and pinpoint faults even in environments saturated with electrical noise.

Built for the realities of field work, this tester features a vibrant 2.4-inch high-definition colour display and a robust 1500mAh rechargeable lithium battery for all-day use.

Features

Isolate faults instantly in noisy environments thanks to the advanced anti-interference line finding mode.
Carry fewer tools on site with this all-in-one diagnostic suite that handles wiremap crimp tests, length measurement, and port flashing.
Work safely around live circuits using the integrated Non-Contact Voltage (NCV) monitoring feature.
Quickly identify power supply issues with automatic PoE detection that recognises standard/non-standard setups, end-span/mid-span configurations, and live voltages.
Enjoy crystal-clear readings in any lighting condition on the bright 2.4-inch HD colour TFT screen.

Specifications

Property	Specification
Display	2.4-inch HD colour TFT screen
Power Supply	1500mAh rechargeable lithium battery (Type-C, 5V/1A)
Battery Life	Up to 10 hours of continuous operation
Supported Interfaces	RJ45, RJ11
Network Speed Support	10M / 100M / 1000M (Identifies Full-duplex / Half-duplex)
Length Measurement Accuracy	<20m: ±1.6m \| 20m–100m: ±2.4m \| >100m: ±3.2m
Crimping Test	Supports RJ45 8-core connections
Dimensions	Approx. 152 mm × 68 mm × 31 mm
