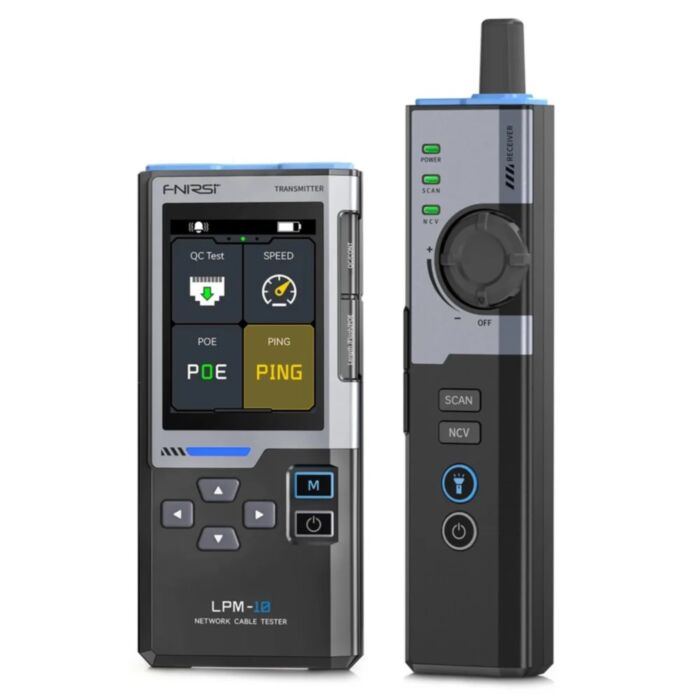

LPM-10C Multifunctional Network Cable Tracker

Finding one cable in a ceiling full of identical blue jackets is usually a two-person job, with a lot of trial and error. A paired tone transmitter and colour-screen receiver turn it into a one-person walk-in-the-park, with anti-interference tracing that still works next to fluorescent tubes and mains runs.

It goes further than a tone-and-probe set. Cable length comes back to ±1.6 m under 20 m and ±3.2 m past 100 m, wiremap testing calls out opens, shorts and crossovers, and an RJ45 crimp test verifies pin-by-pin continuity before a bad termination becomes an intermittent fault six months later.

For live networks, there is PoE detection (end-span, mid-span or 8-pin; standard and non-standard, with supply mode and power level), a PING test, an IP scan for active devices, and port flashing to blink the matching port on a switch. NCV detection flags AC voltage without contact, and a built-in torch.

Features

• Locates a single run through noisy environments, thanks to a switchable anti-interference tracing mode alongside the normal tone mode.

• Reads results at a glance on a 2.4-inch TFT colour screen with adjustable backlight, instead of decoding a row of LEDs.

• Measures cable length to ±1.6 m under 20 m, ±2.4 m from 20–100 m and ±3.2 m beyond 100 m — enough to tell which of two similar runs you're holding.

• Identifies wiring faults fast with pair-check, wiring-sequence and error indication, plus an RJ45 crimping test for verifying terminations.

• Diagnoses PoE automatically: end-span, mid-span or 8-pin power, standard or non-standard, with supply mode and power level reported.

• Confirms link quality with a 10/100/1000 Mbps speed test across full and half duplex, auto-negotiation or fixed mode.

• Flashes the corresponding switch port so you can identify it from the rack without unplugging anything.

• Checks for live AC without contact via NCV, and lights the workspace with a built-in flashlight.

• Works a full day on 1500 mAh (transmitter) and 3000 mAh (receiver) batteries, both charged over a single USB Type-C port (when connected together).

• Adjustable receiver sensitivity and headphone support let you narrow in on a run by ear when the display is out of sight.

Specifications

What's Included

• 1x LPM-10C host unit

• 1x USB Type-C cable

• 1x Alligator clip lead

• 1x Headphone cable

• 1x RJ45 to RJ11 cable

• 1x RJ45 cable

• 1x Storage bag
