5V 2 Channel Relay Module 10A

SKU: 018-DB-DUALRELAY

$6.33 AUD, inc GST

More Views

5V 2 Channel Relay Module 10A
6.33 AUD

SKU: 018-DB-DUALRELAY

$6.33 AUD, inc GST
6 reviews 0 5 5
Ships today (delivered by Mon, 29th of May)
Shipping Offer

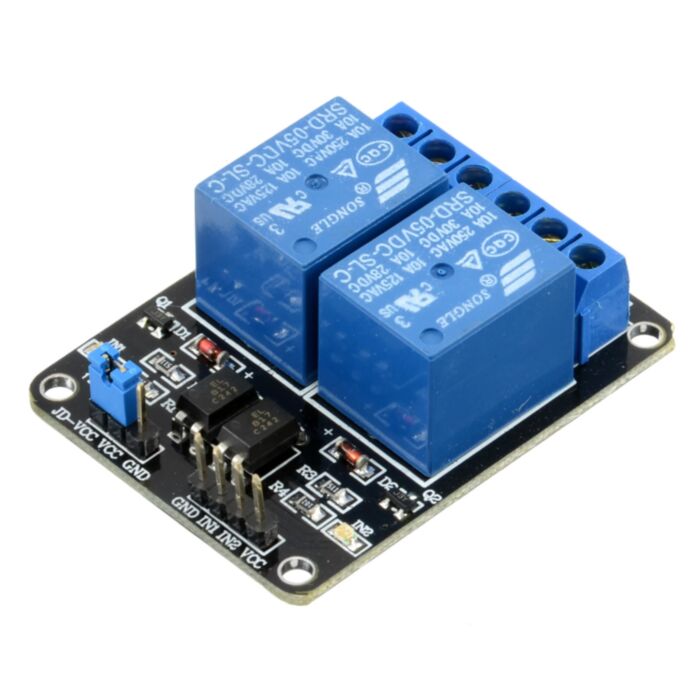

A versatile relay board with opt-isolated inputs. Each channel can drive up to 10A @28VDC

  • 5V supply voltage / input signals
  • Jumper to select high/low
  • Equiped with high-current relay (10A @ 28VDC)
  • Size:3.9cm x 5.1cm (1.54inch x 2.01inch)

This product is listed in:

 >
 >
Documentation and Resources:
  • All About LEDs
  • Hello and welcome to our tutorial where we a look at all things LED. Now first of all, what is an LED? LED stands for Light Emitting Diode and is an electronic component used to convert electrical energy to light energy. This process is called electr...
  • Relay Operation and the Arduino Uno
  • If you could operate your switch without physically toggling it on and off, you would open yourself up to an entire section of electronics. Relays are one of the best ways of doing this. A relay is essentially just a switch, controlled by an electrom...

Product Comments


Customer Reviews

  1. Review by Nathan verified purchaser
    Rating
    100

    Awesome little board! Great value, turns out at low voltage (am using it from a PIC programmed at 3.3V), and opto-isolator is great. Documentation is a bit scarce, but thanks to Michael above for the link to the schematic (input pins need to be pulled low to trigger.. and am pulling up to VCC via 10K)

    The schematic file/project has moved to github, and after poking about, found it here:

    https://github.com/anxb26/fritzing/issues/2753
    (link to attachment: https://storage.googleapis.com/google-code-attachments/fritzing/issue-2753/comment-212/2RelayModule.fzpz) (Posted on 19/08/2016)

  2. Review by Michael verified purchaser
    Rating
    100

    Very easy to use and you can find a fritzing part for it here: https://code.google.com/p/fritzing/issues/detail?id=2753 (Posted on 14/01/2016)

  3. Review by Lee - Nice Relay verified purchaser
    Rating
    100

    To use with a 3.3v board - remove the blue jumper, connect 5v to JD-VCC and GND on the left, 3.3v to VCC on the right and your output ports to IN1 and IN2. No need to connect to GND next to IN1. (Posted on 31/01/2015)

  4. Review by ROB - Value for money .... verified purchaser
    Rating
    100

    Relay is controlling 1150w Blower Pump and a 3w solar water pump for an outdoor spa ... it never fails ..

    perfect product .... yet another great product Core

    (Posted on 12/07/2014)

  5. Review by Luke - Great
    Rating
    100

    Great little relay with a safe opto-coupler protected circuit. Also works on 3v3. Can't fault it. (Posted on 17/12/2013)

  6. Review by paul - works fine
    Rating
    100

    Seems well made and is neatly put together. It's optically isolated which is good and has led indcators when relay on, I'm using with an arduino, works as expected. (Posted on 4/12/2013)
