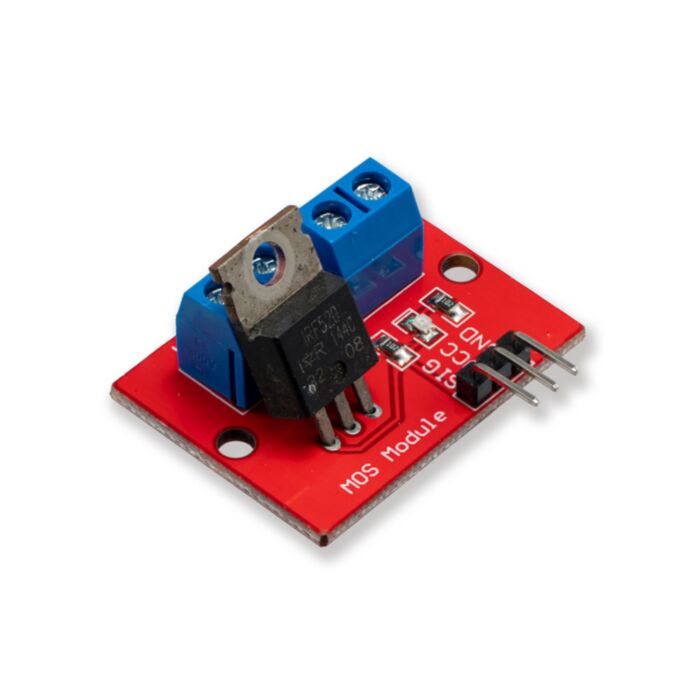

MOSFET Module (Screw terminals)

SKU: CE09435 Brand: Core Electronics

Keep your IO protected and drive high-power outputs.

$1.55 AUD, inc GST
$1.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 5-15 $1.38 (exc GST)
  • 15+ $1.34 (exc GST)
- +

45 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This versatile solid-state switching module is the ultimate control solution for your next project, use it for controlling motors and lights!

Features

  • A large TO-220 package for high current and voltage switching
  • Logic-level input for compatibility with a wide range of microcontrollers and control devices
  • Screw terminals for easy connection
  • Convenient mounting holes

Specifications

  • Logic control voltage: 5V
  • Maximum current rating: 3A per MOSFET

Dimensions

  • Red PCB 35 x 26 mm (excluding right angle headers)
  • Headers extend 6.5mm from edge
  • Height: 23mm tall max (MOSFET can be leaned over to save space)
  • Mounting holes: 3mm diameter
