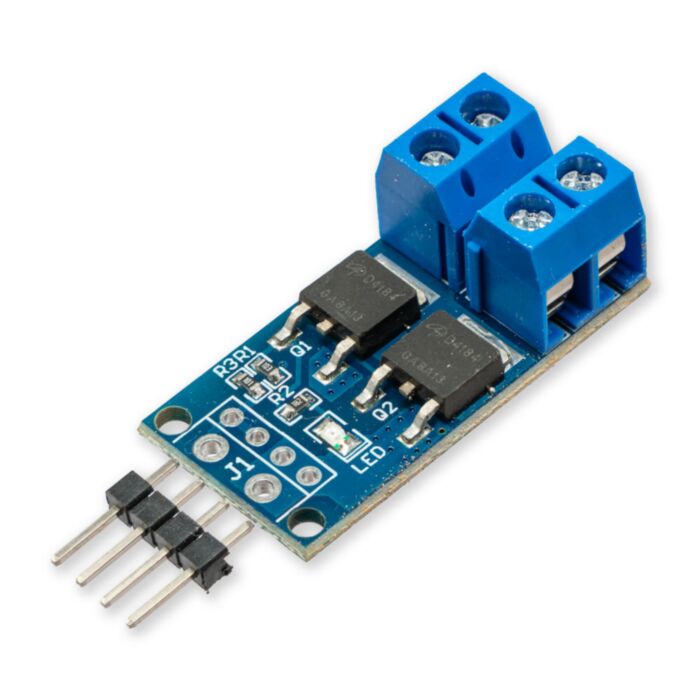

MOSFET Power Switch Module

Rating:
100% of 100
SKU: CE09733 Brand: Core Electronics

Add power control to your projects with this MOSFET module.

$2.85 AUD, inc GST
$2.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 14th of Oct

Quantity Discounts:

  • 5-15 $2.54 (exc GST)
  • 15+ $2.46 (exc GST)
- +

51 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This single-channel module includes all of the passive components and a pair of high-power MOSFET's to control power.

Specifications

  • 3.3-5V Logic
  • Up to 10A Continuous current, 30V Load
  • Low side switching of 1 device with 2x AOD4184 N-Channel MOSFETs
  • Super compact at roughly: 34 x 17 x 14 mm

Pinout



Examples

Raspberry Pi Pico - Micropython

from machine import Pin  # Import required modules
import time

mosfet = Pin(1, Pin.OUT)  # Create a MOSFET on Pin 1

while True:  # Loop indefinitely
    mosfet.value(1)  # Set the MOSFET Pin HIGH, turning the LED on
    time.sleep(1)  # Wait for 1 second
    mosfet.value(0)  # Turn the MOSFET Pin High
    time.sleep(1)  # Wait for 1 second
