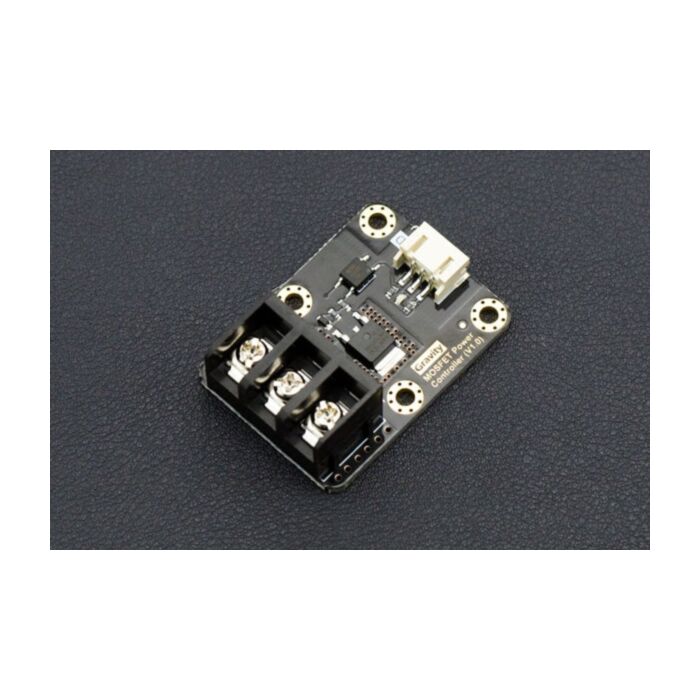

Gravity: MOSFET Power Controller

SKU: DFR0457 Brand: DFRobot
In most Arduino projects, relays are the first choice to drive some large current device. It requires a certain amount of current to drive the internal coil to pick-up...
$6.55 AUD, inc GST
$5.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 19th of Aug

Quantity Discounts:

  • 10-25 $5.77 (exc GST)
  • 25+ $5.65 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

In most Arduino projects, relays are the first choice to drive some large current device. It requires a certain amount of current to drive the internal coil to pick-up contact. But for some MCU, like Intel Edison, Intel joule, lilypad, Raspberry Pi and other microcontroller with limited amount of current GPIO, it’s hard to drive one or more relays simultaneously.

The MOSFET power controller is a module which can drive a large current device with limited current GPIO. It works as a MOSFET relay or MOSFET driver. When you give it a digital high-level signal (3.3~10V), MOSFET turns on, vice versa.

Compare to the relay module, MOSFET power controller is compatible with Arduino, Raspberry Pi, Lattepanda and other Microcontroller, supports 3.3~10V logic power control. The VIN port supports 5~36V; 0~20A power input, if the current is over 10A, we recommend an external heat sink. And MOSFET supports quick ON-OFF switch, the switching frequency arrives 1KHz. That is a good point for robot control.

The MOSFET power controller comes with a standard PH2.0-3P gravity interface. It makes the module compatible with the Arduino IO expansion shield. Plug and play, easy to use.

Specification

  • VIN Operating Voltage: 5V-36V
  • VIN Operating Current: 0A-20A (Suggest external heat sink when the current over 10A )
  • Logic Operating Voltage: 3.3~10V
  • Logic Control Signal: 3.3~10V
  • Switching Frequency: 0-1KHz
  • Switching Character: T(on)=20us/T(off)=50us
  • Operating Temperature: -55?-155?
  • Interface Type: PH2.0-3P
  • Dimension: 44*32 mm/ 1.73*1.26 inches
  • Mounting Hole Size: inner diameter 3.1mm/0.12"; outer diameter 6mm/0.24"

Documents

Parts List

  • Gravity: MOSFET Power Controller x1
  • Gravity Digital Sensor Cable x1
