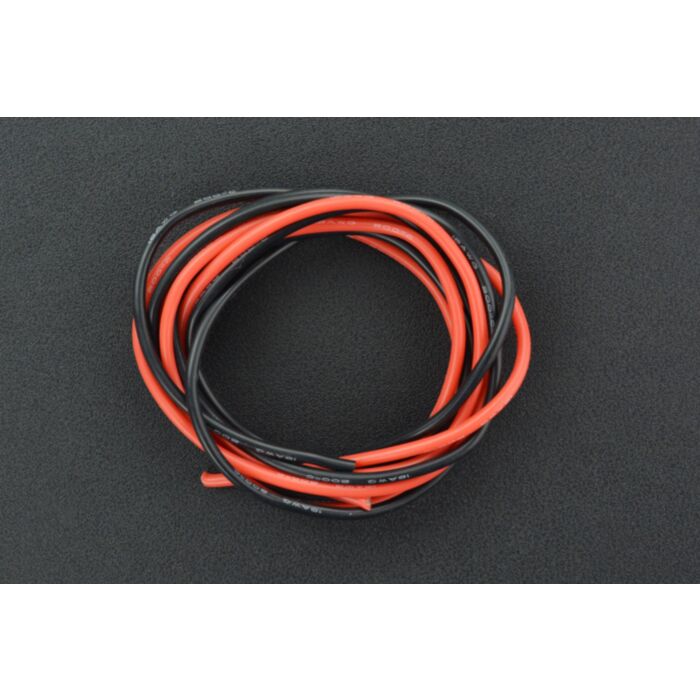

High Temperature Resistant Silicone Wire (18AWG 0.75mm2 1m Red & Black)

Rating:

100% of 100

SKU: FIT0585 Brand: DFRobot

This product is high temperature resistant silicone rubber copper wire with 18AWG and 0.75mm2. It is made of fine tin-plated copper material and not easily oxidized...

$4.80 AUD, inc GST

$4.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $4.24 (exc GST)
25+ $4.15 (exc GST)

Please note this product is pre-cut to 1M increments and is not sold in longer lengths. Ordering Multiple's will be shipped as individual 1M Lengths

This product is high-temperature resistant silicone rubber copper wire with 18AWG and 0.75mm2. It is made of fine tin-plated copper material and not easily oxidized. It adopts the process of mutual twisting, which reduces the signal interference and improves the conductive property. The allowable load voltage is AC600V/DC3KV and the load current reaches 22A. The insulating layer is a silica gel material with excellent performance. The insulating layer is thin but not easy to be broke down. It has elasticity, toughness and acid and alkali resistance. Normally, it can be used at temperatures from -60 ° C to +200 ° C, can be used for robots , ESC, motors, robot arms, aeromodelling, car models, and ship models which require high wire performance.

NOTE

The power supply should not exceed the rated voltage to avoid affecting the wire life.
It should be avoided using over the temperature range of -60 ° C ~ +200 ° C

Features

High temperature resistant, low temperature resistant, not easy to break down, high voltage and high current resistant

Specifications

Rated voltage: AC600V/DC3KV
Allowable current: 22A
Temperature range: -60 ° C ~ +200 ° C
Model: 18AWG 0.75mm2
Inner core material: 0.08mm (diameter) tinned copper wire
Insulation material: silica gel

Contains

High-Temperature Resistant Silicone Wire (18AWG 0.75mm2 Red 1m) x1
High-Temperature Resistant Silicone Wire (18AWG 0.75mm2 Black 1m) x1
