Search results for: 'm5stack cardputer'

Explore the M5Stack NanoC6, a compact IoT development board featuring WiFi 6, Zigbee support, and ESP32-C6 MCU, perfect for smart home and industrial automation projects with its built-in infrared capabilities and Grove interface expansion options.

A 16-bit self-calibrating analog-to-digital converter that operates on I2C

The M5Stack Mini Weight Unit Load Cell Amplifier integrates an HX711, 24-bit A/D chip that is specifically designed for an electronic weighing device.





Explore M5Stack's Smart QR & Barcode Scanner Unit featuring a 640x480 CMOS sensor, integrated STM32F030 MCU, and versatile I2C/UART communication for effortless scanning of QR codes and barcodes in retail, logistics, and manufacturing applications.

It's used to convert the TTL standard to the RS485 standard. If the outside serial device is RS485 standard, you can attach this unit onto M5stack, therefore, to implement the communication with RS485 device by TTL protocol.

This an application-level module, which implements a motion & robotic control and it is totally customizable with different length. Packed with Stepper motor, Mega328 microprocessor, RS485 serial bus, 1515 framework. It realized a linear motion control, you can program the stepper motor to move a certain length with high precision. This type of module can be applied to 3D print, linear push and etc.

M5:bit is an M5Core-to-Microbit serial communication converter/adapter board.

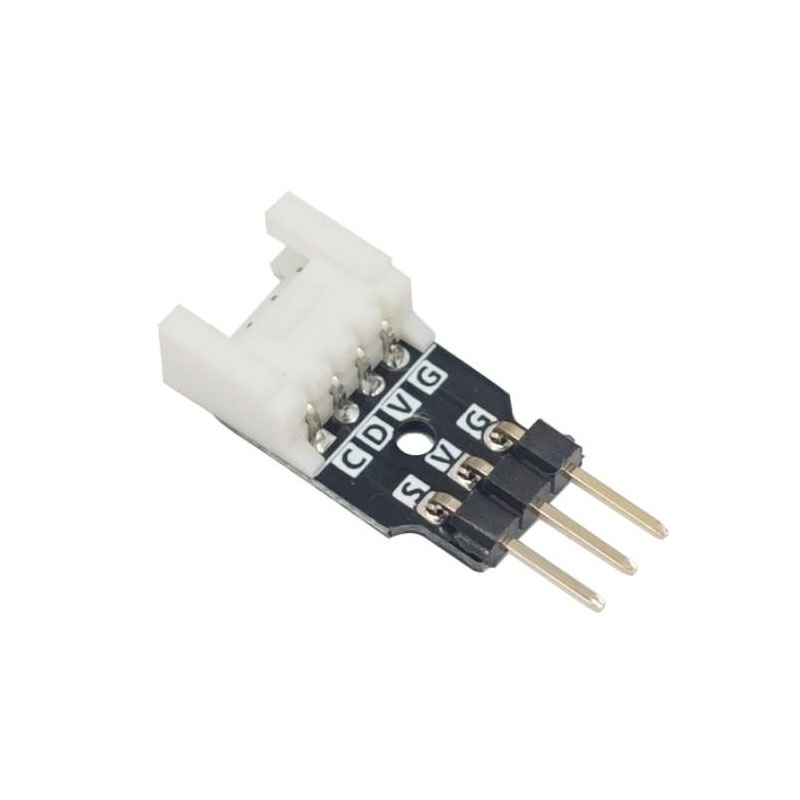

This universal connector for your M5 Stack, connects to pin, commonly used of this part is for the RGB LED strip extension.

Explore M5Stack's USB v1.2 Module featuring MAX3421E chip, offering USB 2.0 host/peripheral functions with SPI communication, GPIO expansion, and universal compatibility for industrial, educational, and smart home applications.

Discover M5Stack's high-precision weight sensor featuring 24-bit accuracy, I2C communication, and STM32+HX711 chip integration - perfect for industrial, healthcare, and laboratory applications where precise weight measurement is crucial.

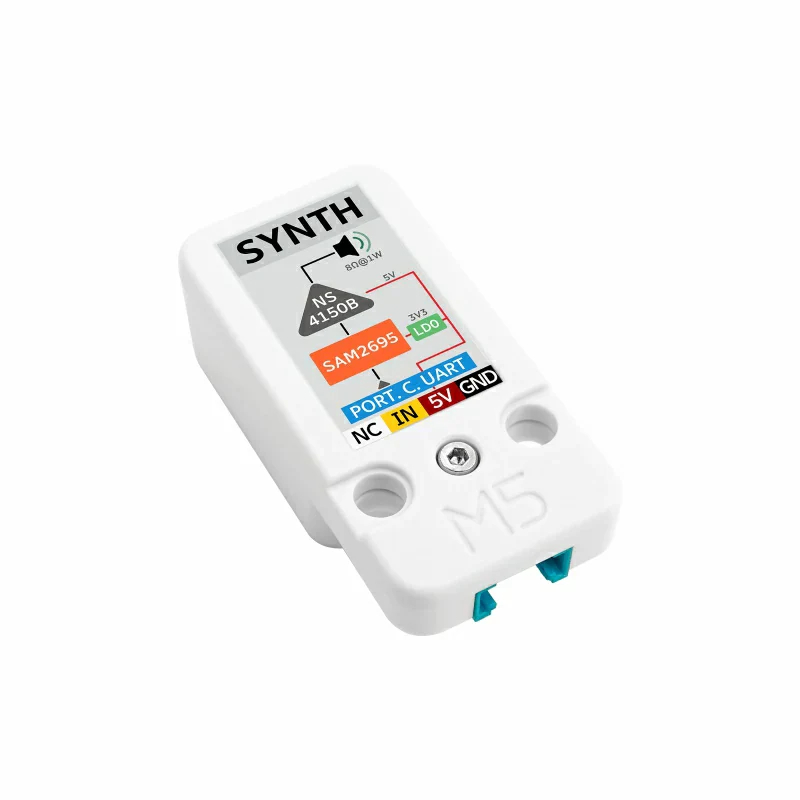

Explore the M5Stack DIY MIDI Music Synthesizer Unit featuring SAM2695 audio synthesis chip, multi-channel instrument output, and built-in Class D amplifier for electronic music production, live performances, and STEAM education projects.

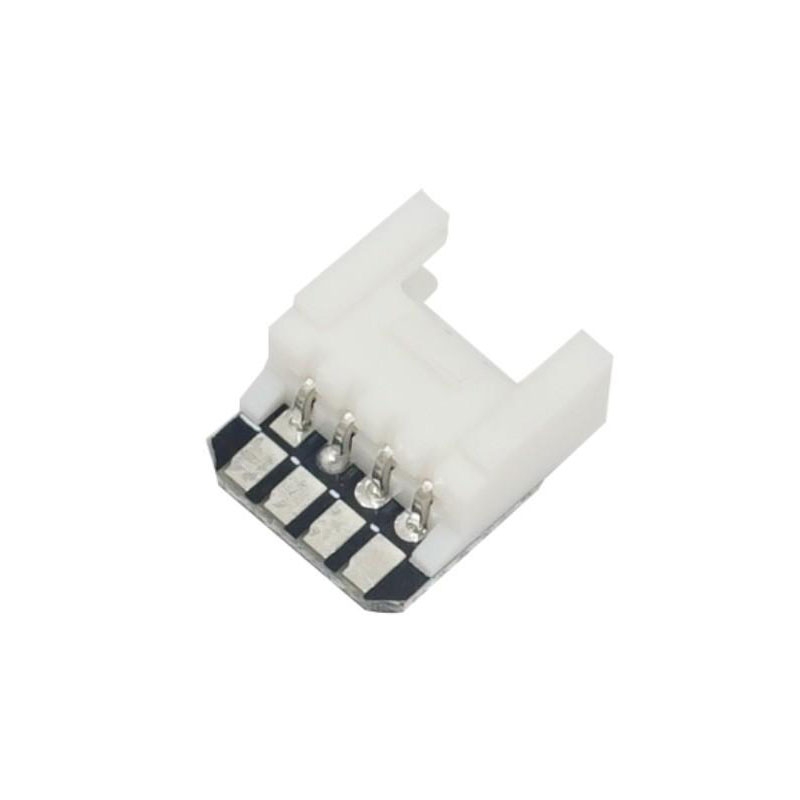

This universal connector for your M5 Stack, connects to GROVE, commonly used of this part is for the RGB LED strip extension.

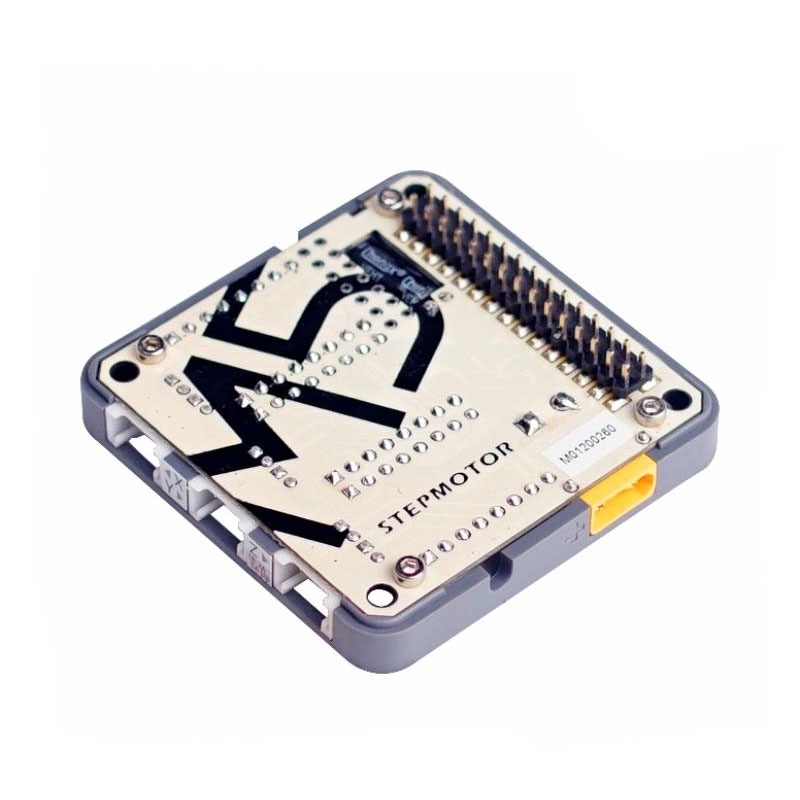

STEPMOTOR is used for stepper motor control. It is perfect for any motion project as it can drive up to 3 Stepper motors with GRBL control.

This an application-level module, which implements a motion & robotic control and it is totally customizable with different length. Packed with Stepper motor, Mega328 microprocessor, RS485 serial bus, 1515 framework. It realized a linear motion control, you can program the stepper motor to move a certain length with high precision. This type of module can be applied to 3D print, linear push and etc.

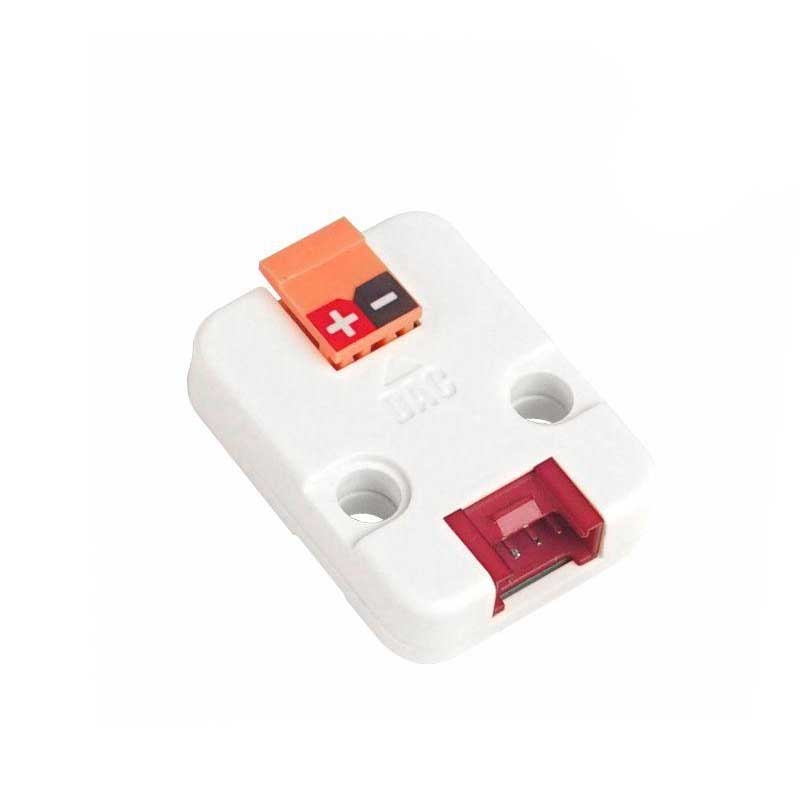

DAC, is a unit with the ability to convert digital signal to analog signal (voltage waveform signal) with support for audio waveform and more. It integrates a 12-bit high resolution DAC chip named MCP4725 which has an on-board non-volatile memory (EEPROM). The unit communicates with the M5Core using the I2C protocol.

This universal connector for your M5 Stack, connects to GROVE, commonly used of this part is for the RGB LED strip extension.

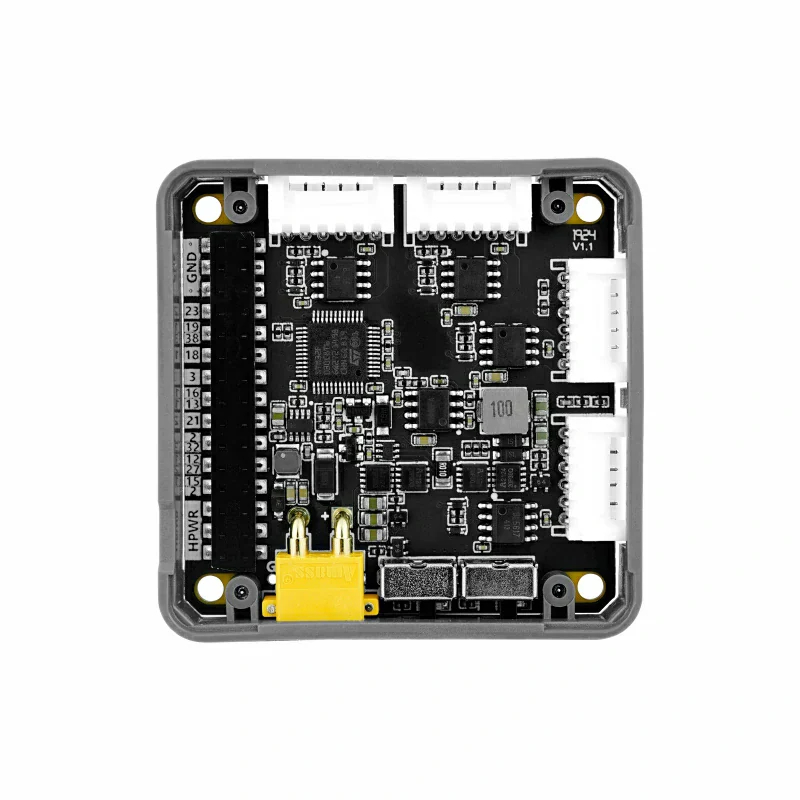

COMMU is a Muti-Communication-Interface-Converter. Integrated with 2IIC, 1TTL, 1CAN, 1RS485. Apparently COMMU has packed with most of series communications.

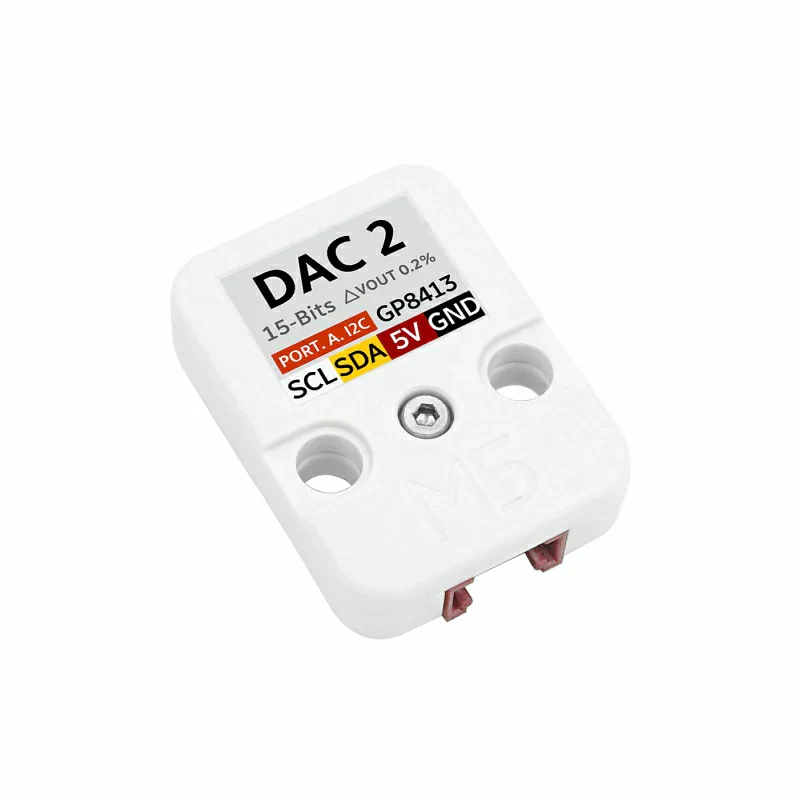

Explore M5Stack's DAC2 I2C Unit featuring the GP8413 chip, offering dual-channel digital-to-analog conversion with 15-bit resolution and precision up to 0.01% linearity for accurate voltage control and signal processing applications.

Explore the M5Stack 4-Channel Smart Motor Driver STM32, a versatile encoder motor control module featuring STM32+BL5617 technology, supporting multiple control modes and real-time power monitoring for robotics and automation applications.
