M5Stack DAC2 Hat - Precision Analog Converter
Available with a lead time
Expect dispatch between Dec 30 and Jan 10
Quantity Discounts:
- 10-25 $19.88 (exc GST)
- 25+ $19.47 (exc GST)

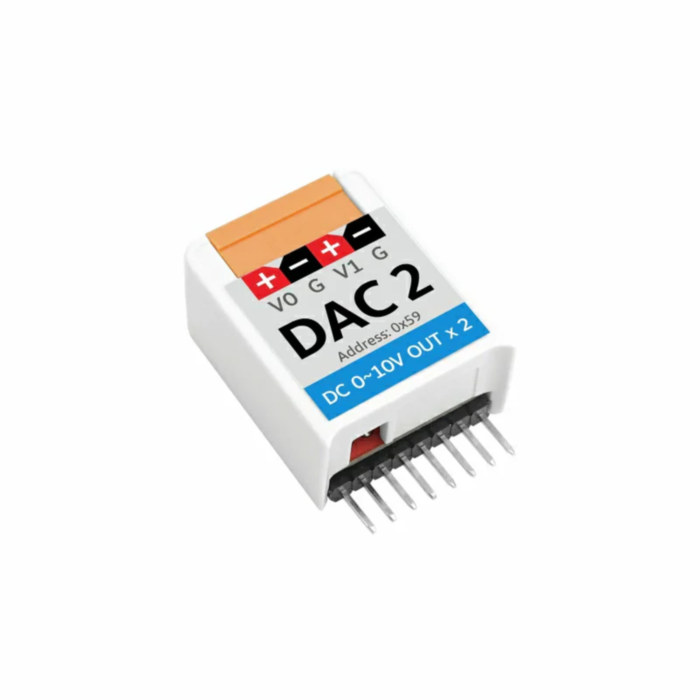

The M5Stack DAC2 Hat is a precision digital-to-analog conversion unit engineered for seamless integration with StickC series controllers. Featuring the GP8413 solution, this sophisticated device delivers exceptional 15-bit resolution across dual independent 0-10V analog outputs with remarkable accuracy - achieving a mere 0.2% output voltage error and 0.01% linearity.
Key Features
- Dual-channel 15-bit digital-to-analog conversion
- Selectable 0-5V or 0-10V output ranges
- Ultra-precise output with just 0.2% voltage error
- Superior 0.01% linearity performance
- I2C communication with default address 0x59
- 3-bit hardware addressing enables parallel connection of up to 8 devices
- Built-in output short-circuit protection
- Operating temperature range: 0-40°C
How to Use
The DAC2 Hat connects directly to M5Stack StickC series controllers including the M5Stack Core2 ESP32 IoT Development Kit through the built-in HAT interface. Configuration is handled via I2C communication, with the default address set to 0x59. Multiple DAC2 Hats can be connected in parallel by configuring unique addresses through the 3-bit hardware addressing system.
For protection during operation, the integrated short-circuit protection automatically shuts down outputs if a connection to ground is detected, preventing damage to the device and connected equipment.
Applications
- Precision motor speed control systems
- LED brightness regulation
- Industrial control systems
- Power supply voltage regulation
- Analog signal isolation in industrial environments
What's in the Box
- 1x DAC2 Hat unit
- 1x VH3.96-4P connector
- 1x Mounting sticker
Technical Specifications
| Specification | Value |
|---|---|
| DAC Resolution | 15-bit |
| Maximum Output Voltage | 10V |
| Output Voltage Error | <0.2% |
| Linearity Error | 0.01% |
| Dimensions | 35 x 24 x 13.7mm |
| Weight | 6.7g |
Compatibility
- M5StickC
- M5StickC PLUS
- M5StickC PLUS2
Additional Resources
About M5Stack
M5Stack is a leading technology company specialising in development tools and modular electronic solutions. Their extensive range of products includes microcontroller development boards, sensors, and various electronic modules designed for rapid prototyping and educational purposes. M5Stack's innovative approach to modular design allows for quick and efficient development of electronic projects across various applications.
This product is listed in:
Breakouts & Modules>Digital to AnalogPrototyping>Data Converters
Breakouts & Modules>Communication
