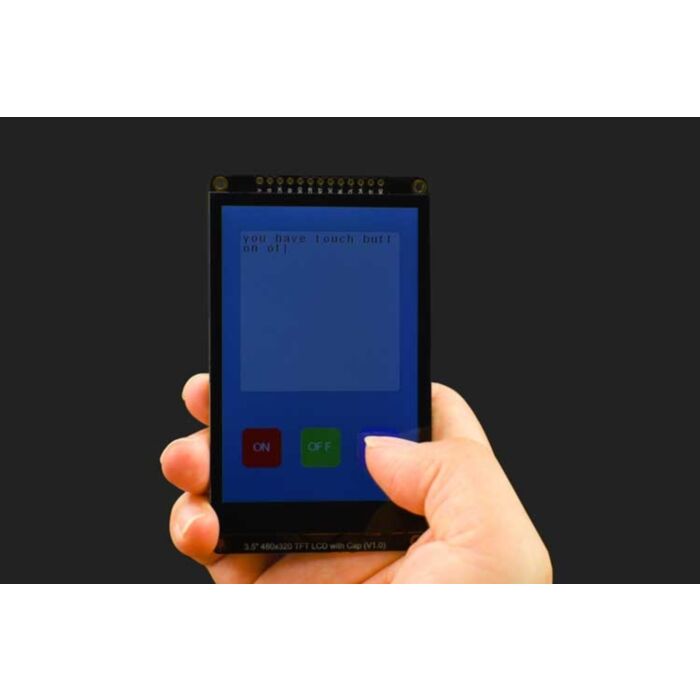

3.5” 480x320 TFT LCD Capacitive Touchscreen

SKU: DFR0669 Brand: DFRobot

With 480x320 color pixels, this 3.5” LCD display module adopts ILI9488 driver chip and integrates GT911 touch chip that supports 5 capacitive touch-points at most...

$68.95 AUD, inc GST

$62.68 AUD, exc GST

Available with a lead time
Expect dispatch between May 17 and May 23

Quantity Discounts:

6-12 $60.80 (exc GST)
12+ $59.55 (exc GST)

With 480x320 color pixels, this 3.5” LCD display module adopts ILI9488 driver chip and integrates GT911 touch chip that supports 5 capacitive touch-points at most. This IPS display supports for SPI (4-wire) communication mode and performs excellently in the angle of view (60/60/60/60). In addition, the module provides compatibility with GDI (work with main-controllers with GDI), plug and play. Furthermore, it features high resolution, wide viewing angle, and simple wiring, which can be used in all sorts of display applications, such as, IoT controlling device, game console, desktop event notifier, touch interface, etc.

The 3.5” LCD module can be powered at 3.3~5V and is compatible with multiple main-controllers: UNO, Leonardo, ESP32, ESP8266, FireBeetle M0. Use the GDI interface to work with M0, which could effectively reduce wiring steps. Besides, there is an onboard MicroSD card slot for displaying more pictures.

Note: The product doesn’t contain a MicroSD Card.

Features

Wide-angle of view
Multiple capacitive touch points
High resolution
GDI, plug, and play
Onboard MicroSD card slot

Applications

IoT controlling End
Game console
Desktop event notifier

Specification

Operating Voltage: 3.3V-5.5 V
Color Depth: 16-bit(RGB565)
Driver Chip: ILI9488
Touch Chip: GT911
Pixels: 480x320
Communication Mode: SPI
Brightness (cd/m2): 300(TYP)
Full-screen Consumption: 48.1mA*5V/3.3V(Typ)
Operating Temperature: -20°C ~ +70°C
Display Area: 73.44×48.96 mm
Module Size: 55.50x95.00 mm
Mounting Hole Diameter: 2 mm

Documents

Product wiki

Parts List

3.5”480x320 TFT LCD Capacitive Touchscreen x1
2.54-10P Single Row Black Pin x1
FPC0.5-18PIN Flex Flat Cable Reverse Direction 10cm x1
