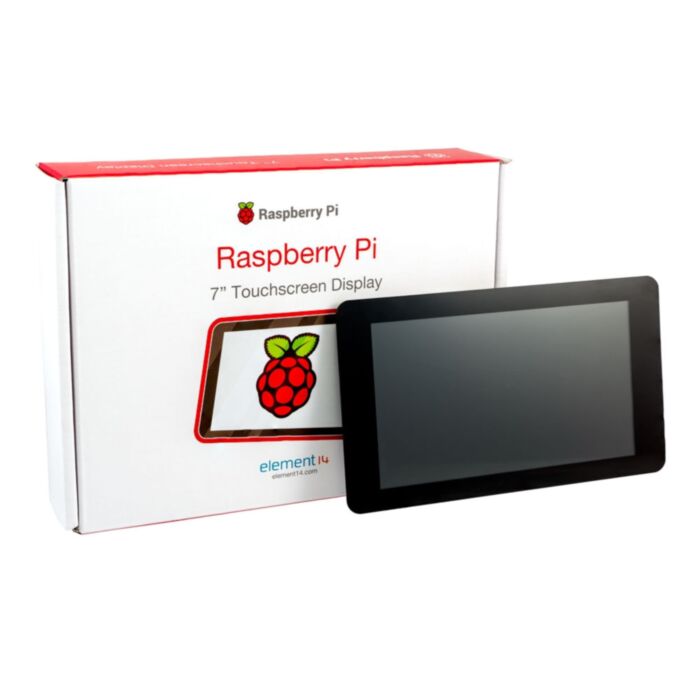

Pi Foundation PiTFT - 7" Touchscreen Display for Raspberry Pi

SKU: CE04459

$125.00 AUD, inc GST
$113.64 AUD, exc GST

More Views

Pi Foundation PiTFT - 7" Touchscreen Display for Raspberry Pi
125 AUD

SKU: CE04459

$125.00 AUD, inc GST
$113.64 AUD, exc GST
16 reviews 0 5 5

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Official 7-inch Touchscreen for the Raspberry Pi is the best touchscreen for your Pi project. The 7-inch display is large enough to comfortable view any desktop environment and features a resolution of 800x480 pixels, plenty enough! The capacitive touchscreen is accurate and responsive, and with the new onscreen keyboard in the newest releases of Raspbian OS, you'll have all you need for a standalone Pi project!

  • 7-inch TFT screen - With the 7 inch TFT display, you'll have a resolution of 800x480 crisp pixels to display your Pi's desktop environment, be it Retro-Gaming, OctoPrint, Media Center, or Video Kiosk
  • 10-Point Capacitive Touch - With 10 points of contact available for your touch screen, multi-fingered gestures and more are possible right on the display. No keyboard/mouse required.
  • Same-sized Adapter Board - The adaptor board that runs the screen matches the form factor of the Raspberry Pi. This means you can mount it to your Pi and use a short DSI ribbon to connect the display.
  • Mounting hardware included - Mounting the adaptor and display together is straightforward, with all the hardware you need included in the package.
  • Power supplied from the Pi - You don't need a standalone power supply for the screen, simply siphon power from the Pi and it's power supply via the GPIO or USB connectors.
  • Enclosures and Cases - As it's official hardware, there's plenty of enclosures and cases available that are rock-solid designs made by Pi Foundation supporters.

Note: Raspberry Pi and power supply are NOT included in this kit! See the guides below to learn how to setup your screen using the Raspberry Pi's power supply. If you need a complete kit, we've got the Touchscreen Kit for Raspberry Pi that includes everything you need.

Hookup Guide

The display will technically work with the older Model A and Model B boards (connecting it to the DSI port on the Pi board), however the mounting holes on the back of the display will only line up with the newer board designs (A+, B+ and Pi2). Once it's all connected up, reboot or power up your Raspberry Pi and it will auto-detect the display and you'll be away!

We're full-time makers and love Raspberry Pi, we've used this display as a monitor in multiple projects and have written some guides on how to get it working, how to enable/disable touch, rotating the display and more!

Our guide on using Displays and Screens with Raspberry Pi

Our guide on rotating the display with Raspberry Pi

Technical Details

  • TFT Display
  • Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
  • Viewable screen size: 155mm x 86mm
  • Screen Resolution 800 x 480 pixels
  • 10 finger capacitive touch.
  • Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.
  • Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.
  • Will require the latest version of Raspbian OS to operate correctly.

This product is listed in:

Documentation and Resources:
Educational Workshops
  • Raspberry Pi Workshop for Beginners
  • Welcome to the Raspberry Pi Workshop for Beginners! Here you'll be able to follow along with our series of bite-sized videos that cover everything you'll need to know to get started with your Raspberry Pi, and start making awesome projects. My name...
  • Raspberry Pi Desk Clock with Data Display
  • This project uses a Raspberry Pi and TFT display panel to provide a desk clock that also monitors our Home Solar and Battery system, and the weather, in one neat unit.
  • Mass SD card Image Writer
  • We've built a mass SD card writer using a Raspberry Pi 3 Model B, some USB hubs and SD card readers. This beast has enough ports to write 49 SD cards at once! At Core Electronics, sometimes logistics hang-ups mean that suppliers cannot meet our demand for pre-flashed SD cards. During these periods we have to pick up the slack by manually imaging blank SD cards we source ourselves. Of course, this is a super-tedious process, and ...
  • Raspberry Pi IoT Doorbell
  • This Raspberry Pi, IoT Doorbell is basically a simple smart Door Bell, which takes a photo of whoever rings it, and emails it to the specified email address, and keeps all the photos in a folder. (along with going Ding-Dong). Any Problems, just leave a comment/start a discussion below....
  • Raspberry Pi OSMC - Custom Media Center
  • I wanted to upgrade my media center (RPi B+ with Xbian) to something a bit nicer, more stable and more accessible than just the RPi in a basic plastic case.

Product Comments


Customer Reviews

  1. Review by Snowy verified purchaser
    Rating
    100

    Excellent quality on these; ours we are looking to mount into a wall as part of a smart home set up. The solid mounting on the back should make doing this a breeze! (Posted on 31/10/2018)

  2. Review by Tom verified purchaser
    Rating
    100

    Very good product (Posted on 9/10/2018)

  3. Review by Ian verified purchaser
    Rating
    100

    A very nice item, easy to fit and use and clear thank you (Posted on 6/08/2018)

  4. Review by Kim verified purchaser
    Rating
    100

    This screen was really easy to install, and made playing with my Pi so much easier as I'm not tethered to my desk. (Posted on 31/07/2018)

  5. Review by Neil verified purchaser
    Rating
    100

    a good product does just as it should (Posted on 28/05/2018)

  6. Review by Paul - This product will work out of the box with Raspbian verified purchaser
    Rating
    80

    No software help whatsoever was provided, so if you're not using a Pi Linux distro with drivers already included, you're on your own. It's assumed that you are going to power it via GPIO pins; in my opinion inclusion of a USB splitter cable would have been more useful.

    Note from Core Electronics staff - this product will work out of the box with Raspbian (the default operating system that can be installed via NOOBS). (Posted on 29/01/2018)

  7. Review by joseph verified purchaser
    Rating
    100

    the screen is nice and clear , was simple to install (Posted on 11/12/2017)

  8. Review by Jonathan verified purchaser
    Rating
    100

    Sturdy and easy to set up. Good quality (Posted on 30/11/2017)

  9. Review by Brian verified purchaser
    Rating
    100

    Hmmm, didn't actually need it (Posted on 1/11/2017)

  10. Review by Kit verified purchaser
    Rating
    100

    The Pi Foundation touchscreen display is a great piece of equipment and is actually very easy to connect to the Pi even with no prior experience. (Posted on 14/09/2017)

  11. Review by Chris verified purchaser
    Rating
    100

    This does what it says on the tin.

    The 7 inch touch screen works with little or no effort on the Raspberry Pi. I've got mine plugged into a RPI 2 running the latest, shiny Raspbian. Linux support for touch screens isn't seamless, and requires more than a little effort for a pleasant experience, but that's hardly this screen's fault.

    It would be nice if the resolution was a little higher, as I'm used to my 1080p Nexus 7, but I suspect that I wouldn't be able to tap on anything accurately enough. Still, browsing is cramped enough that I've taken to scaling pages down to 80%.

    It's thin, by the way. Really thin. I got a case, and obviously if you bolt a Pi on the back the end result is not a Galaxy Tab, but the raw screen at the edge is remarkably thin.

    I expect that I'll use this weekly, if not daily, for many years to come. Recommended. (Posted on 12/09/2017)

  12. Review by Gary verified purchaser
    Rating
    100

    Wow this is a beauty, good clear display, touch works great even with protective film on it. Pity it didnt come with a stand or legs, but apart from that, really great, just hook it up and your running (Posted on 7/08/2017)

  13. Review by Luke verified purchaser
    Rating
    100

    Great little package, does require some sort of case or stand to be used properly. (Posted on 7/06/2017)

  14. Review by Rafael verified purchaser
    Rating
    100

    Great screen, especially with the SmartPi Touch stand. (Posted on 11/05/2017)

  15. Review by David verified purchaser
    Rating
    100

    I have installed the screen on my Raspberry Pi unit and it runs perfectly so far. I initially thought the keyboard would display on screen automatically on startup, a quick trip to the help and Sam pointed to match box site and now every thing works OK, great to have backup a click away thanks guys
    Regards
    DavidF (Posted on 30/03/2017)

  16. Review by Terry verified purchaser
    Rating
    100

    Having just got into the Raspberry Pi I decided I needed a screen and so I ordered the Pi Foundation 7" Touchscreen from Core Electronics. After it arrived in the post I had it working perfectly in minutes, I have since ordered and received the smarti pi case as well. They compliment each other perfectly. Thanks Core Electronics (what can I buy now?) (Posted on 6/12/2016)
