3.5inch Capacitive Touch Display (F) for Raspberry Pi

SKU: WS-30896 Brand: Waveshare

3.5inch Capacitive Touch Display (F) for Raspberry Pi, IPS Panel, 320×480 Resolution, 5-point Touch, Immersion Gold Process, Toughened Glass Panel...

$36.80 AUD, inc GST

$33.45 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 01

Details

3.5inch Capacitive Touch Display (F) for Raspberry Pi, IPS Panel, 320×480 Resolution, 5-point Touch, Immersion Gold Process, Toughened Glass Panel 3.5inch Capacitive Touch Display for Raspberry Pi

Embedded ST7796S driver and GT911 capacitive touch control chip

Comes with examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino

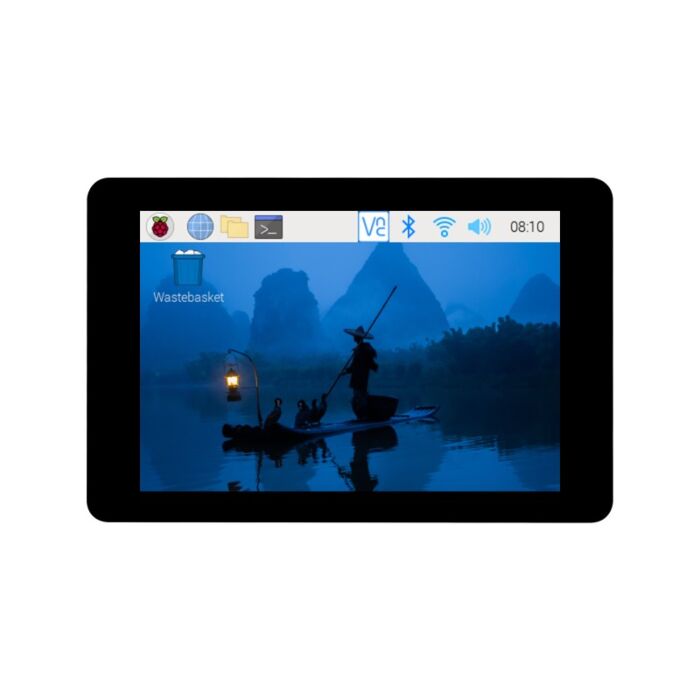

3.5inch Capacitive Touch Display (F), front view

Size3.5"
Resolution320×480
Display Color262K
Display PanelIPS
Display DriverST7796S
Display InterfaceSPI
Touch DriverGT911
Touch InterfaceI2C
Touch TypeCapacitive
Touch Points5-Point
Viewing Angle170°
Touch PanelToughened Glass
Certification 1CE
Certification 2ROHS
PCB ProcessImmersion Gold

The display orientation is portrait by default, 320×480 resolution (H×V). Change the software config for landscape display. Features at a glance

262K color display with 320 × 480 resolution for excellent visual effects
High touch screen transmittance, fast response, sensitive touch, and long lifetime
Embedded with ST7796S driver chip and GT911 capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
Supports Pigo pin communication and GH1.25 13PIN cable connection
Adopts Immersion Gold process, nice looking, with better durability
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

Specifications

Operating Voltage	5V	Logic level	3.3V
Display Driver	ST7796S	Touch Driver	GT911
Display Interface	4-wire SPI	Touch Interface	I2C
Display Panel	IPS	Display size	3.5inch
Touch Type	Capacitive	Touch Points	5-point touch
Display Size	49.36 × 73.84mm	Touch panel Size	61.00 × 92.44mm

3.5inch Capacitive Touch Display

Embedded with ST7796S Driver Chip And GT911 Capacitive Touch Control Chip

smooth and stable display

Highly compatible with Raspberry Pi desktop OS, supports smooth and stable operation

3.5inch Capacitive Touch Display (F), compatible with Raspberry Pi desktop OS

IPS Display Panel

Excellent Display Performance, 262K color, wide viewing angle

High Refresh Rate

supports 60Hz high Refresh Rate for a smoo
