A smaller version of Raspberry Pi's touch display 2 - perfect for cramming a Pi into a smaller space!
Available with a lead time
Expect dispatch between Sep 22 and Sep 26

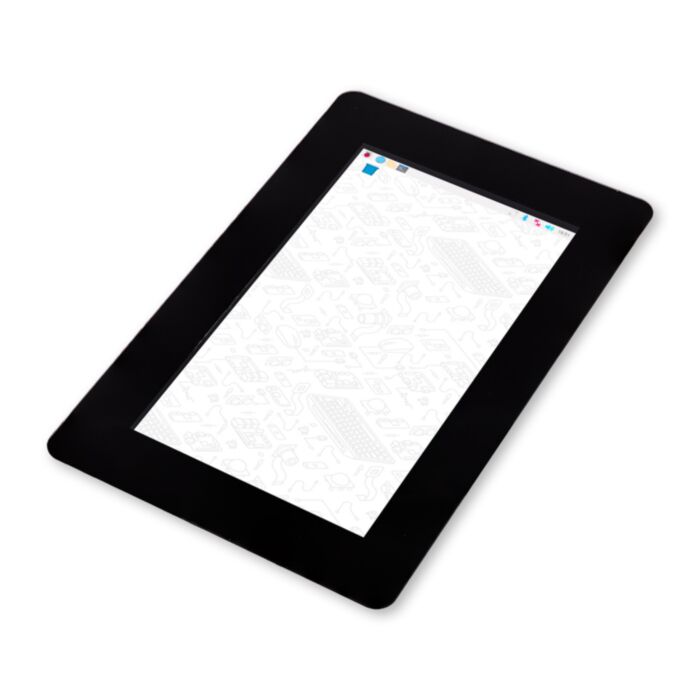

Elevate compact Raspberry Pi projects with the 5″ Raspberry Pi Touch Display 2, offering vibrant HD visuals and responsive five-finger touch in a space-saving form factor. Ideal for portable control panels, embedded kiosks and handheld interfaces, this portrait-native display delivers true multi-touch interaction when a small form-factor matters.
We also stock the Official 7 inch version
Feature | Specification |
---|---|
Display Size | 5″ diagonal |
Active Area | 62.1 mm × 110.4 mm |
Resolution | 720 × 1280 pixels |
Colour Depth | 24-bit RGB |
Touch Technology | True capacitive multi-touch (5-finger) panel |
Viewing Angle | 80 degrees |
Backlight Brightness | 500 cd/m² |
Surface Treatment | Anti-glare |
Response Time | Typ 35 ms, Max 40 ms |
Operating Temperature | –20 °C to +70 °C |
Interface | MIPI DSI connector |
Power | 5 V DC via Raspberry Pi GPIO header |
Dimensions | 91.46 mm × 143.4 mm |
Getting the Raspberry Pi Touch Display 2 up and running is as simple as two connections: GPIO for power and DSI for display. With compact dimensions of 120mm x 190mm and a slim 6.6mm profile, the Touch Display 2 offers flexible mounting options while maintaining a professional appearance. The lightweight design at 244g ensures easy integration into both portable and fixed installations.
Check out the Official Raspberry Pi Documentation for this display.
